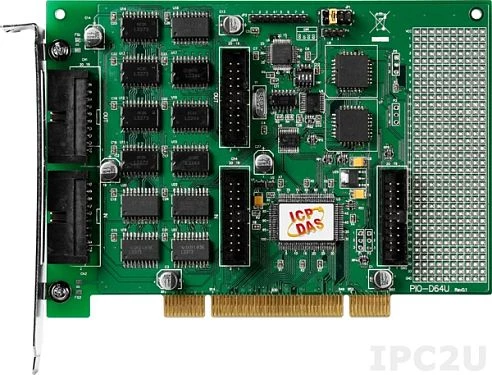

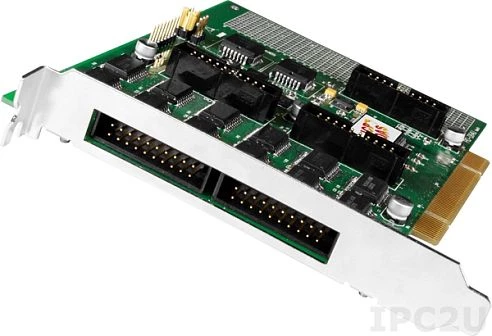

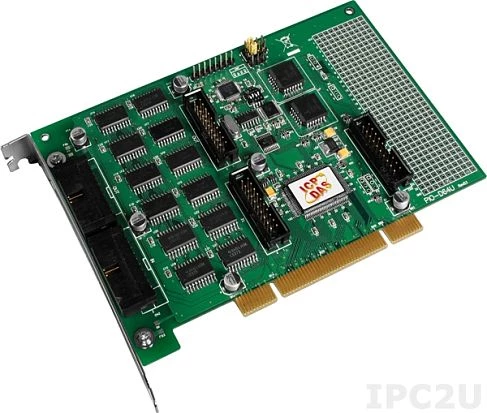

Universal PCI 32DI/32DO & 6 Counter/Timer Card
PIO-D64U
ICP DAS
SKU: 55156800
Price on request
Available on order
Available on order
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
32
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
6
Counter capacity
16 Bit
Max frequency
10 kHz
Digital Output
Total channels of digital output
32
Output voltage
0~5 V
Max. load current
24 mA
Connectors
Internal Ports
3x20-pin box header
Connectors
2x20-pin box header
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, Visual Studio .NET, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.12 kg
Gross Weight
0.35 kg
