Name: PET-2254P
Brand: ICP DAS
SKU: 10637400
Price: Price on request
Availability: PreOrder

Home

Catalog

Industrial Automation

Remote I/O Devices and Modules

Industrial Ethernet Modules

PET-2254P

ICP DAS

SKU: 10637400

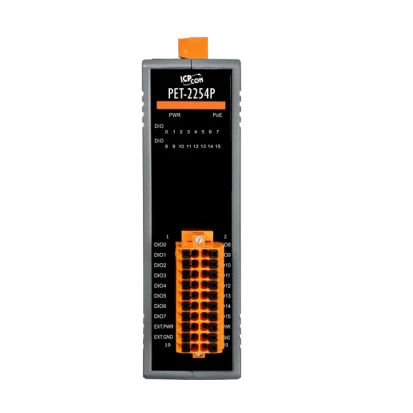

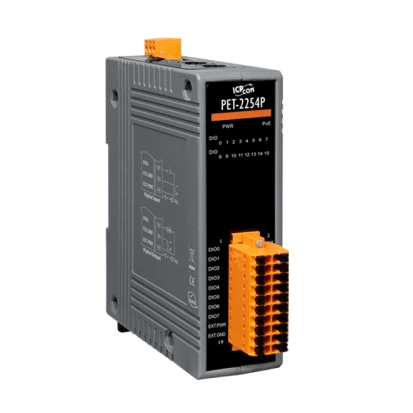

Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Universal DIO (DO Max. Load Current: 350 mA) (RoHS), PoE, 10-48VDC-in

Price on request

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount, Wall

Ethernet

Total Ethernet

10/100 Mbit/s

Additional Functions

Watchdog timer type

Hardware, Software

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus UDP slave

Digital Input

Total channels of digital input

Type

Dry contact

Sink/Source

Source

Counter capacity

32 Bit

Max frequency

2.5 kHz

Digital Output

Total channels of digital output

Type

Open collector

Sink/Source

Sink

Output voltage

5~50 V

Max. load current

350 mA

System Power Input

Input Voltage DC

10..30 V

Power over Ethernet (PoE)

PoE

Dimensions and weight

Width

33 mm

Depth

127 mm

Height

108 mm

Operating Conditions

Operating Temperature

-25..75 °C

Humidity

10-90%

Standards and Certifications

EMS

IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5

Dimensions

Net Weight

0.18 kg

Gross Weight

0.27 kg

Documentation

Datasheet (P)ET-2254_(P)ET-2254P ET-2200_user_manual_en.pdf
