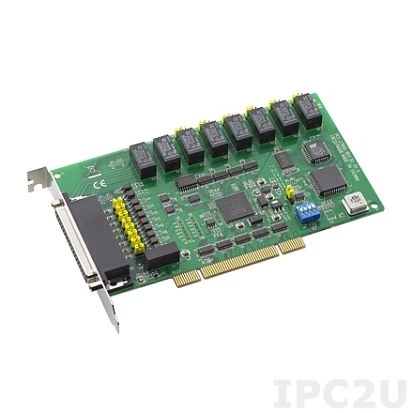

PCI Isolated 8DI & 8 Relay Output Board with 10-ch Counter/Timer
PCI-1760U-BE
Advantech
SKU: 55223300
Price on request
Available on order
Available on order
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
8
Isolation of Digital Input
2500 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
4.5~12 V
Number of channels
8
Counter capacity
16 Bit
Max frequency
0.5 kHz
Digital Output
Total channels of digital output
8
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
2A@30V DC, 1А@110V AC
Relay (Form C)
2
Contact rating of relay (Form C)
2A@30V DC, 0.6A@125V AC
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8
Development Software
LabVIEW, Visual Studio .NET
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.27 kg
Gross Weight
0.27 kg
