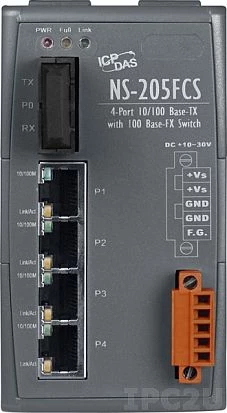

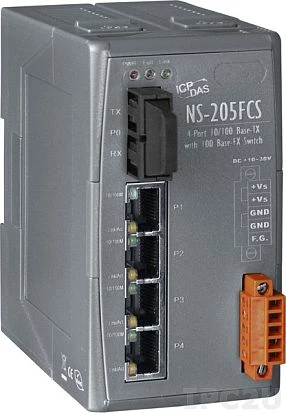

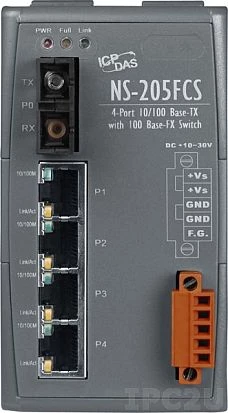

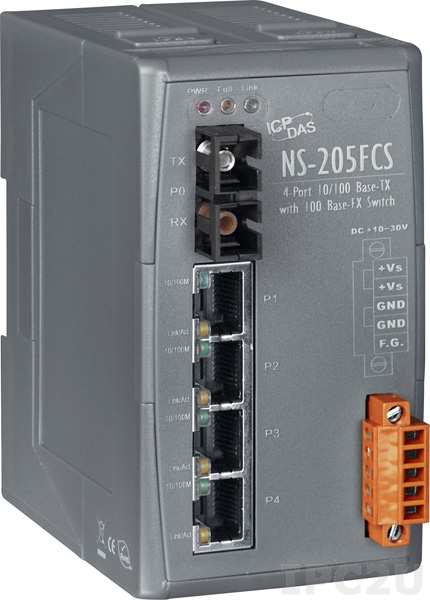

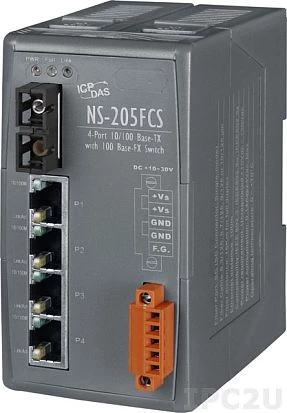

NS-205FCS

ICP DAS
SKU: 05131800
Industrial Smart Ethernet Switch with 4 10/100 Base-T Ports and 1 Single-mode 100 Base-FX Port
End-of-life product
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
1xSC, 4xRJ-45
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
single-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Redundant power input
Yes
Input Voltage DC
10..30 V
Power Supply Reserve input Voltage DC
10..30 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
64 mm
Depth
98 mm
Height
110 mm
Operating Conditions
Operating Temperature
0..70 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Gross Weight
0.6 kg
