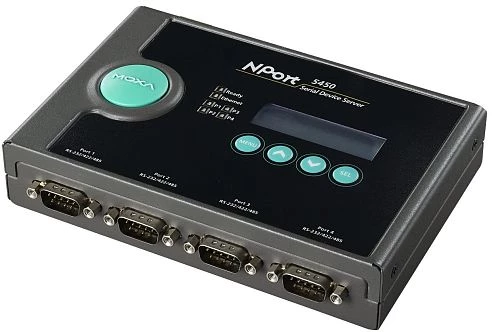

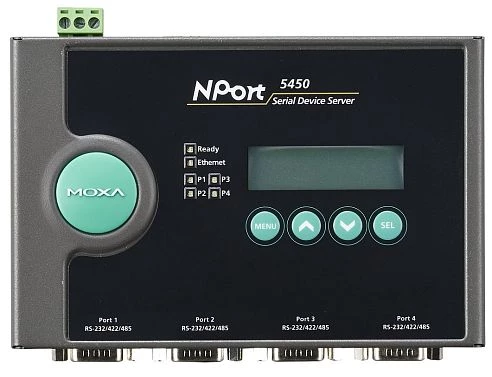

NPort 5450I w/ adapter
MOXA
SKU: 66074200
4 port device server, 10/100M Ethernet, RS-232/422/485, terminal block, 15KV ESD, 12-48 VDC, w/ 2KV Isolation
Price on request
Available on order
Available on order
NPort 5450I w/ adapter
Interface server NPort 5450I w/ adapter from MOXA enables data transmission from equipment with serial interface via Ethernet or wireless connection with the speed of up to 921600 bit/s. The device features a metal chassis with 4 RS-232/422/485 ports and 1 Ethernet port. The mounting configuration on a wall or a DIN-rail is available. The server operates with famous protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP. The server can be set up using Telnet, switches, or a Web-interface. The device is compatible with all widespread operating systems and functions properly within a broad temperature band of 0 ... 55 °C.
NPort 5450I w/ adapter
Interface server NPort 5450I w/ adapter from MOXA enables data transmission from equipment with serial interface via Ethernet or wireless connection with the speed of up to 921600 bit/s. The device features a metal chassis with 4 RS-232/422/485 ports and 1 Ethernet port. The mounting configuration on a wall or a DIN-rail is available. The server operates with famous protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP. The server can be set up using Telnet, switches, or a Web-interface. The device is compatible with all widespread operating systems and functions properly within a broad temperature band of 0 ... 55 °C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, ICMP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
DC Input, DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
158 mm
Depth
33 mm
Height
103 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 55011
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.58 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, ICMP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
DC Input, DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
158 mm
Depth
33 mm
Height
103 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 55011
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.58 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, ICMP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
DC Input, DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
158 mm
Depth
33 mm
Height
103 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 55011
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.58 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, ICMP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
DC Input, DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
158 mm
Depth
33 mm
Height
103 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 55011
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.58 kg
Gross Weight
0.9 kg
