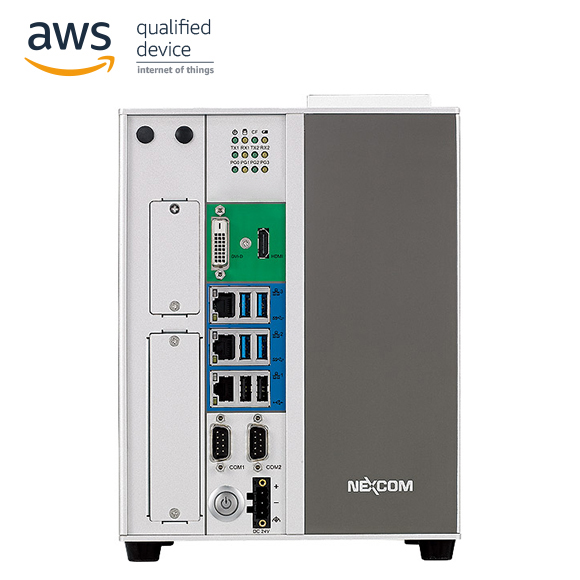

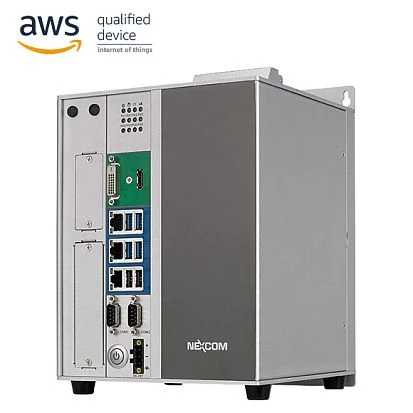

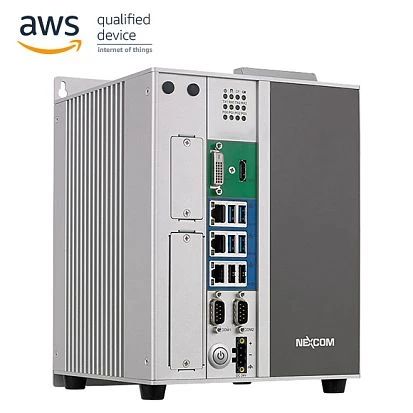

Industrial Fieldbus Embedded Computer, Support 6th Gen Intel Core i7/i5/i3 CPUs, up to 8GB DDR4 RAM, HDMI, DVI-D, 3xGbit LAN, 6xUSB, 2xRS232/422/485, mSATA, 2x2.5" SATA Drive Bay, 2xPCI, 1xPCIex8 Slots, 24V DC-In, without Audio-out
NIFE-300P3
NEXCOM
SKU: 56084000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
2
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
64 GB
Extension Slots
Total
4
PCI Express x8
1
Mini-PCIe/Mini Card
1
PCI
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED, TX LED, RX LED
Controls
On/Off
Connectors
Connectors
2xDB9, DVI-D, HDMI, 3xRJ45, 6xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
19..28 V
Power Consumption
50.4 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows 10
Dimensions and weight
Width
175 mm
Height
251 mm
Depth
185 mm
Operating Conditions
Operating Temperature
-10..60 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64
Shock
HDD: 20G, half sine, 11ms, IEC60068-27; CFast: 50G, half sine, 11ms, IEC60068-27
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
1.6 kg
