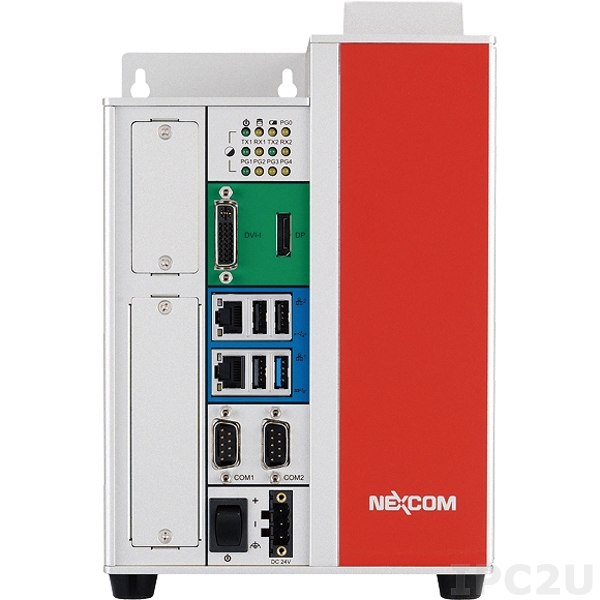

Industrial Fieldbus Embedded Computer, Intel Celeron J1900 2GHz CPU, up to 8GB DDR3L, DVI-I, DP, 2xGbE LAN, 4xUSB, 2xRS232/422/485, mSATA, 2.5" SATA Drive Bay, 2xPCI, 2xMini-PCIe, 24V DC Input, without Audio-out
NIFE-200P2
NEXCOM
SKU: 55940500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Wall
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
CFast Slots
1
SD Slots
1
Extension Slots
SIM Card slots
1
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45, 4xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
151 mm
Height
230 mm
Depth
157 mm
Operating Conditions
Operating Temperature
-5..55 °C
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-64
Dimensions
Gross Weight
1.6 kg
