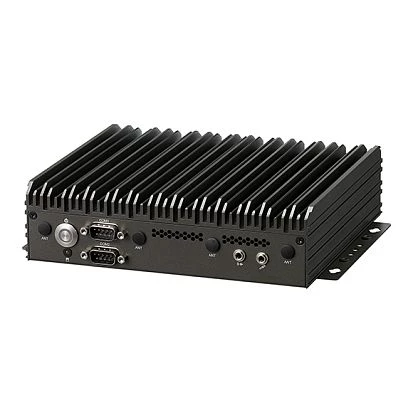

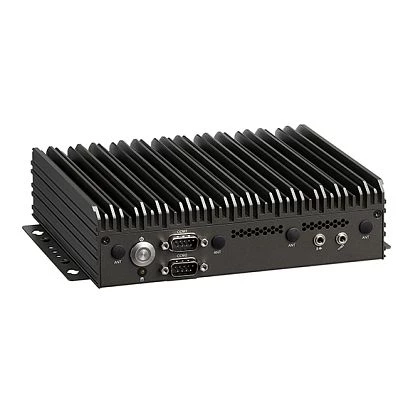

Network Digital Signage Player, Intel Core i7-1185G7E, up to 64GB DDR4 SO-DIMM, 4xHDMI, 2xLAN, 2xCOM, 3xUSB 3.0, 5xUSB 2.0, Audio, M.2 3052 Key B, M.2 2280 Key M, 96W AC/DC adapter
NDiS-V1100-i7
NEXCOM
SKU: 10996200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i7-1185G7E
Socket
FCBGA 1449
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
4xHDMI
Ethernet
Controller Type
Intel i219-LM, Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
1
USB v3.x
3
Audio
Audio Controller
Intel HD Audio
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Connectors
Connectors

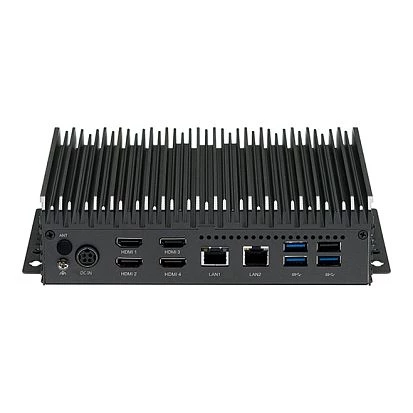

2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, 4xHDMI
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
190 mm
Height
165 mm
Depth
51.1 mm
Operating Conditions
Operating Temperature
0..45 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.1 kg
Gross Weight
5 kg
Documentation
