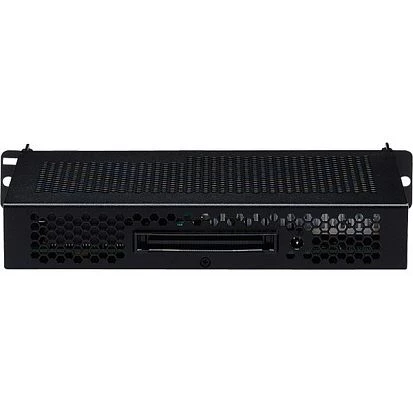

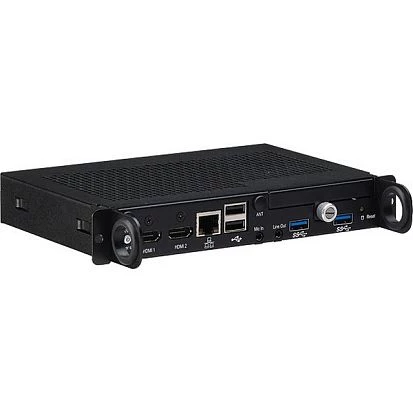

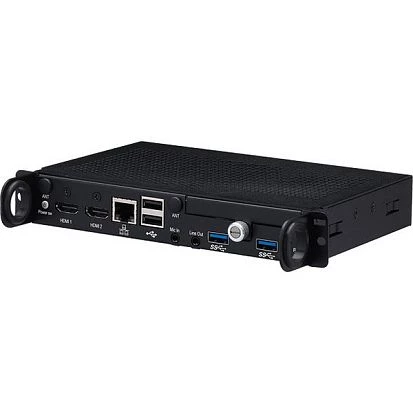

OPS Digital Signage Platform, Intel Celeron N3150 1.6GHz, up to 8GB DDR3L, 2xHDMI, TMDS, Gbit LAN, 4xUSB, Audio, 2.5" HDD bay, Mini-PCIe, 12...19V DC-In
NDiS-M335
NEXCOM
SKU: 07108300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Intel Celeron N3150
Max CPU frequency
2.08 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
7
USB 2.0
3
USB v3.x
4
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCI
1
SIM Card slots
1
Connectors
Connectors

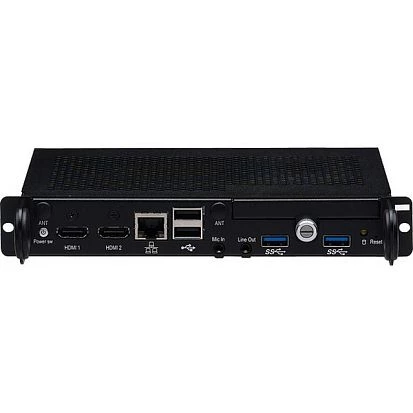

2xHDMI, RJ45, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12..19 V
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
200 mm
Height
30 mm
Depth
119 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
