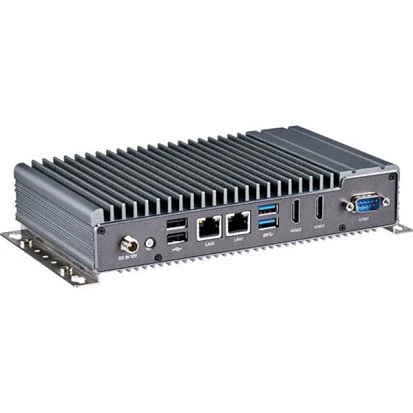

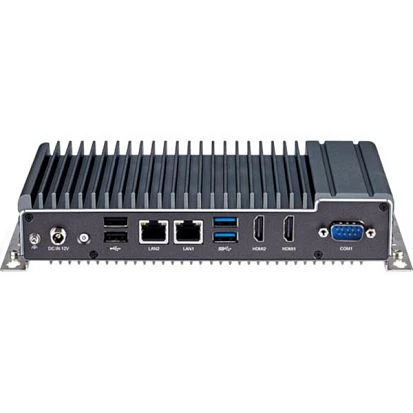

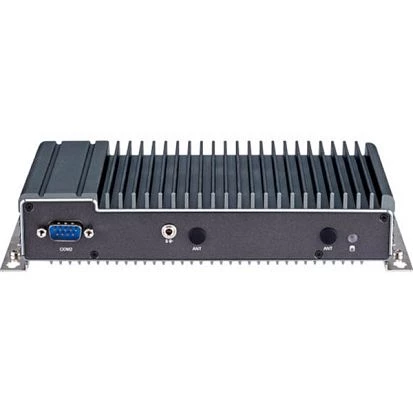

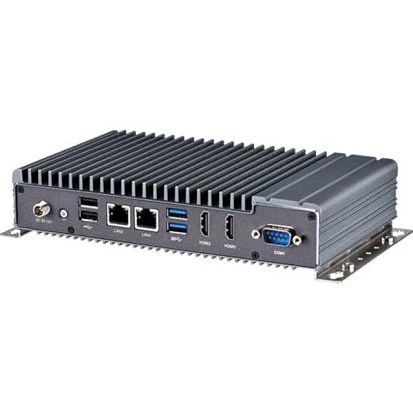

OPS Digital Signage Platform, Intel Celeron J3455 SoC, Up to 8GB DDR3L RAM, 2xHDMI, 2xGbit LAN, 4xUSB, 1xRS232, 1xRS232/422/485, Audio, 1xM.2, 1xMini-PCIe, +12V DC-in, -20..60C
NDiS-B337
NEXCOM
SKU: 57452400
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3455
Socket
FCBGA1296
Max CPU frequency
2.3 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 500
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, 2xSMA
System Power Input
Input Voltage DC
12..12 V
Power Consumption
60 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
200 mm
Height
40 mm
Depth
117.6 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
andom: 2Grms@5~500 Hz, IEC60068-2-64. Sinusoidal: 2G@5~500 Hz, IEC60068-2-6
Shock
50G peak acceleration, 11ms according to IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
8 kg
