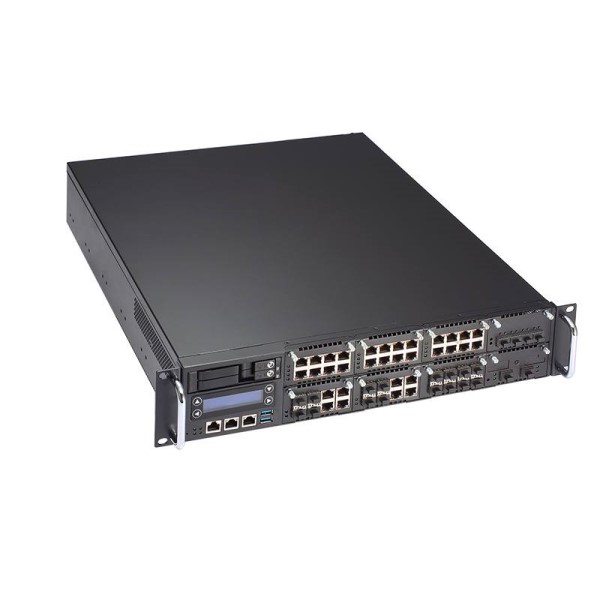

2U Rackmount Network Appliance Platform with Dual LGA3647 Socket Intel Xeon Scalable Processors, Intel C621 (Purley) and up to 66 LAN
NA860-R2GI-C621-US w/o IPMI
AXIOMTEK
SKU: 07976800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
2 U
CPU
СPU Generation/Family
Skylake, Cascade Lake
Socket
LGA 3647-P0
CPU Support Type
Xeon
Number of CPU
2
Chipset
Chipset
Intel C621
Memory
Form-factor
DDR4
Socket Type
12xDIMM
ECC
Yes
Maximum Memory
384 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
PCI Express x8
2
LED / Controls
LED
LED Bar
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 3xRJ45 Ethernet, 2xUSB, RJ45 (Console)
Power Supply
Type of Power Supply
Redundant, 2U
Output Power
800 W
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
430 mm
Height
88 mm
Depth
562 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
8.32 kg
Gross Weight
12.76 kg
