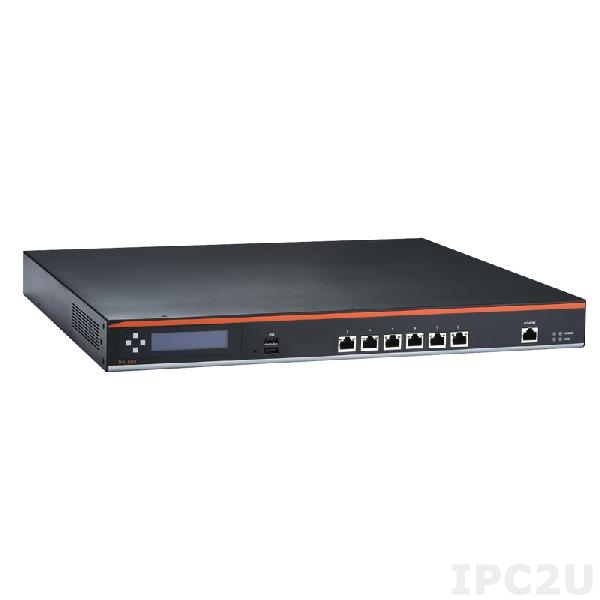

NA560-R6GI-H61-US-RC

NA560-R6GI-H61-US-RC

SKU: 05977600

Network Appliance LGA1155 for Intel Core CPU, Intel H61 chipset, DDR3, 6xGB LAN, 2x2.5" SATA HDD, 1 x PCIe expansion

End-of-life product

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

19" Rackmount

Height

1 U

CPU

Socket

LGA1155

CPU Support Type

Core i3, Core i5, Celeron, Core i7, Pentium

Chipset

Chipset

Intel H61

Memory

Form-factor

DDR3

Socket Type

2xDIMM

Maximum Memory

16 GB

Ethernet

Total Ethernet

6

10/100/1000 Mbit/s

6

Interfaces

COM Total

1

RS-232

1

USB Total

2

USB 2.0

2

Drive interfaces

CFast Slots

1

Extension Slots

PCI Express x8

1

Mini-PCIe/Mini Card

1

Power Supply

Output Power

270 W

Software

Operating System Compatibility

Linux kernel 2.6

Dimensions and weight

Width

44 mm

Height

430 mm

Depth

392 mm

Operating Conditions

Operating Temperature

0..45 °C

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

8.2 kg

Gross Weight

9.8 kg
