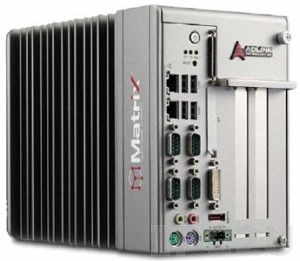

MXC-6101D/Fan

Name:

ADLink

Mounting Configuration:

Wall

Processor Installed:

Intel Core i7-620LE

Socket:

CPU onboard

Frequency:

2 GHz

Chipset:

Intel QM57

Memory Type:

DDR3 800, DDR3 1066

Default on Board Memory:

2 GB

Assembly:

Removable

Maximum Memory:

4 GB

ECC:

No

Graphic Controller:

Integrated in CPU

Controller Type:

Intel 82574L 10/100/1000 Mbps

Total Ethernet:

2

10/100/1000 Mbit/s:

2

COM Total:

4

RS-232:

2

RS-232/422/485:

2

USB Total:

5

USB 2.0:

4 (+1 internal)

Channels of DIO:

32

Isolation DIO:

Yes

Channels of DI:

16

Channels of DO:

16

SATA 2 Channels:

1

RAID SATA 2:

0, 1

eSATA Channels:

1

CF Socket:

Yes (1xCF type II external socket, 1xCF type II internal socket)

2.5" Cage Intenal:

1

Total:

2

PCI:

2

Programmable:

Yes

Type:

Fan

Connectors:

4xDB9, DVI-I, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, External SATA, DC input (terminal block), 68-pin VHDCI DIO

Input Voltage DC:

9 ... 32 V

Operating System Compatibility:

Windows XP, Windows XP Embedded, Windows 7, Linux OS

Width:

130 mm

Height:

183 mm

Depth:

225 mm

Temperature:

0 ... 50 °C

Humidity:

0 ... 95 % (non-condensing)

Vibration:

Operating, 5 Grms, 5-500 Hz, 3 axes (w/ CF or SSD)

Shock:

Operating, 50 G, Half sine 11 ms duration (w/ CF or SSD)

Certifications:

CE, FCC Class A
