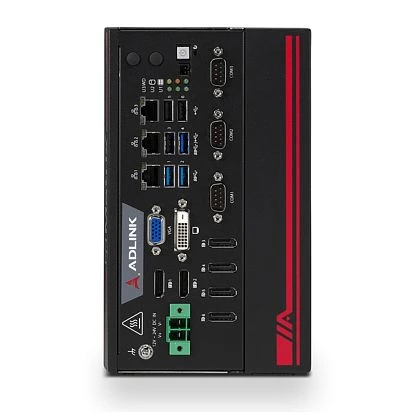

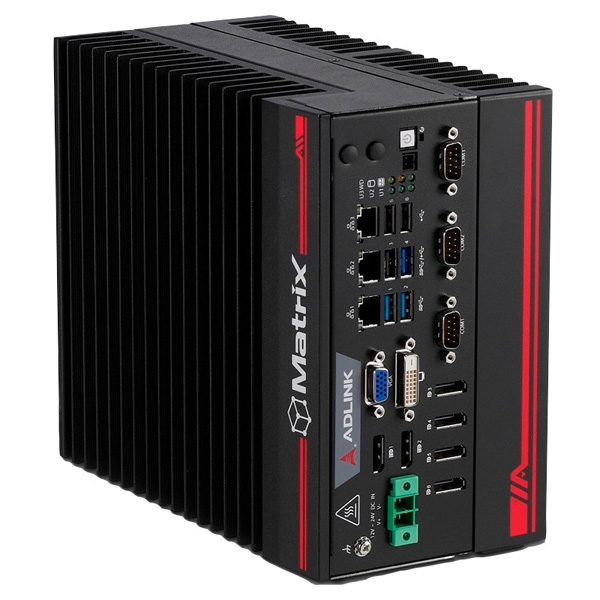

Intel Core i3-9100TE+H310 fanless embedded controller with 8GB DDR4 SODIMM, 2x DP++/DVI/VGA, 3xGbE, 4xCOM, 3xUSB 3.1, 3xUSB 2.0, DIO, 2x2.5" SATA, CFast, M.2 2280, EGX-MXM-A2000
MVP-5103-MXM
ADLink
SKU: 10687300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i3-9100TE
Max CPU frequency
3.2 GHz
Chipset
Chipset
Intel C246
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
7
USB 2.0
4
USB v3.x
3
Digital Input
Isolation DIO
Yes
Audio
Audio Controller
Intel HD Audio
Drive interfaces
RAID Levels
1, 5, 10
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Multi-SIM
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, 2xDisplayPort, DC input (terminal block), DIO (terminal block), CFast slot
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
220 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
125 mm
Height
240 mm
Depth
210 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5 Grms, 5-500 Hz, 3 axes (w/ CFast or SSD)
Shock
50 G, half sine 11 ms duration (w/ CFast or SSD)
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL/cUL, CB
Dimensions
Gross Weight
3 kg
