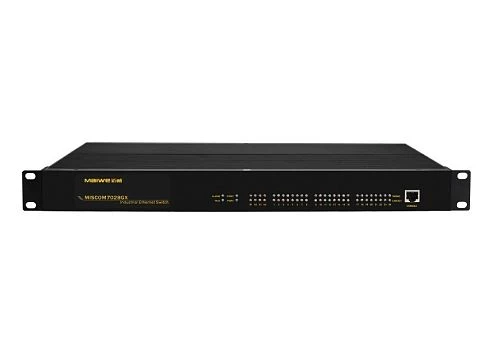

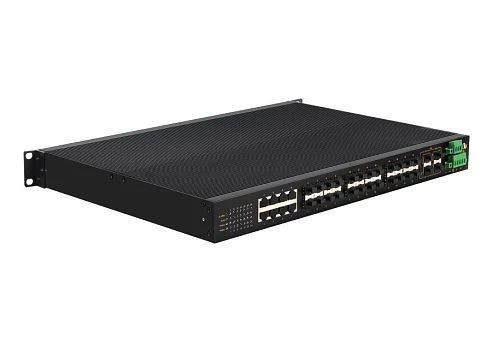

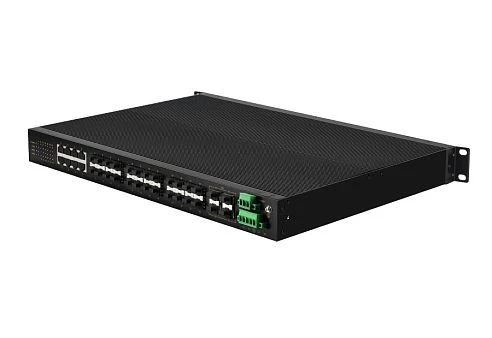

MISCOM7028GX-4XGF-16GF-8GC-2AD220
SKU: 10623900
Layer 2 Rackmount Managed Industrial Ethernet Switch, 4 10 Gigabit SFP ports+16 Gigabit Fx ports+8 Gigabit combo ports, Dual AC85-264V/ DC110-370V isolate power supply, IP40, -40...+85C
End-of-life product
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xCombo (RJ-45 or SFP)
SFP 100/1000 Mbit Ports
16
10 Gbit SFP+ Ports
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
QoS
Supported functions
Port Mirror, Rate Limit, Broadcast Storm Protection, Link Aggregation, Automatic power failure notification, Automatic port failure notification, Flow Control, Access Control Lists, Ring Operation
MAC Table Size
16000
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, LLDP, Telnet, VLAN, SNTP Client, QoS, DHCP, SNMP, SNTP, GVRP, TFTP, IGMP, CoS, IGMPv1/v2/v3, GMRP, FTP, Multicast, IGMP Snooping v1/v2/v3, SNMP Trap
Reservation protocols
ERPS, MSTP, STP, VRRP, MW-Ring, EAPS, RSTP
Security Protocols
HTTPS, SSH, IEEE 802.1X Network Access Control, ACL
IEEE Standard
ieee_802.3u, ieee_802.3ab, ieee_802.3z, ieee_802.3x, ieee_802.1q, ieee_802.3
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through utility by COM port
System Power Input
Redundant power input
Yes
Input Voltage DC
110..370 V
Power Supply Reserve input Voltage DC
110..370 V
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Height
1 U
Dimensions and weight
Width
482.6 mm
Depth
315 mm
Height
44 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC, rohs
Power Automation
IEC 61850-3
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
3.72 kg
Gross Weight
4.09 kg
