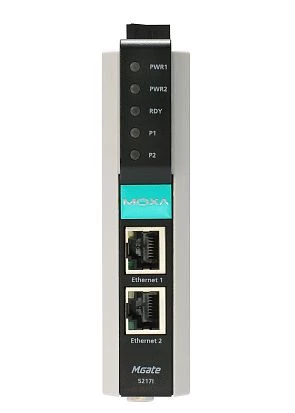

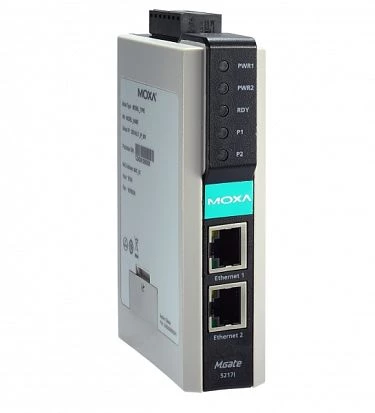

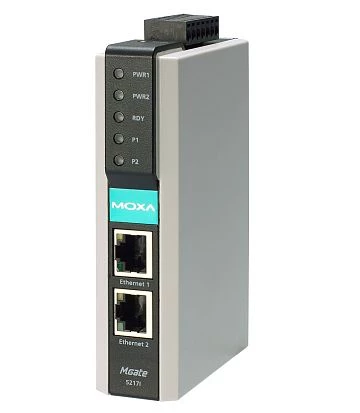

MGate 5217I-1200-T
MOXA
SKU: 09185700
2 port Modbus-to-BACnet/IP gateway, 1200 points, 2kV isolation, 12 to 48 VDC, 24 VAC, DIN-rail mounting, -40 to 75C, 48VDC-in
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Industrial Protocols
BACnet/IP slave, Modbus TCP server, Modbus TCP, Modbus TCP client, Modbus RTU master, Modbus ASCII master
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, UDP, DNS, TCP/IP, ARP, DHCP Client, NTP Client, SNMP Trap
Security Protocols
HTTPS
Digital Output
Total channels of digital output
1
LED / Controls
LED
READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Web-interface
Controls
1xReset
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
29 mm
Depth
89.2 mm
Height
124.5 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Safety
UL 62368-1, IEC 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
0.52 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Industrial Protocols
BACnet/IP slave, Modbus TCP server, Modbus TCP, Modbus TCP client, Modbus RTU master, Modbus ASCII master
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, UDP, DNS, TCP/IP, ARP, DHCP Client, NTP Client, SNMP Trap
Security Protocols
HTTPS
Digital Output
Total channels of digital output
1
LED / Controls
LED
READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Web-interface
Controls
1xReset
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
29 mm
Depth
89.2 mm
Height
124.5 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Safety
UL 62368-1, IEC 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
0.52 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Industrial Protocols
BACnet/IP slave, Modbus TCP server, Modbus TCP, Modbus TCP client, Modbus RTU master, Modbus ASCII master
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, UDP, DNS, TCP/IP, ARP, DHCP Client, NTP Client, SNMP Trap
Security Protocols
HTTPS
Digital Output
Total channels of digital output
1
LED / Controls
LED
READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Web-interface
Controls
1xReset
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
29 mm
Depth
89.2 mm
Height
124.5 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Safety
UL 62368-1, IEC 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
0.52 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Industrial Protocols
BACnet/IP slave, Modbus TCP server, Modbus TCP, Modbus TCP client, Modbus RTU master, Modbus ASCII master
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, UDP, DNS, TCP/IP, ARP, DHCP Client, NTP Client, SNMP Trap
Security Protocols
HTTPS
Digital Output
Total channels of digital output
1
LED / Controls
LED
READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Web-interface
Controls
1xReset
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
29 mm
Depth
89.2 mm
Height
124.5 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Safety
UL 62368-1, IEC 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
0.52 kg
