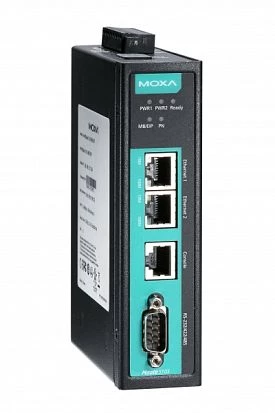

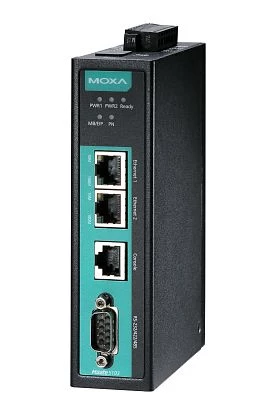

MOXA MGate 5103-T

1-port Modbus/EtherNet/IP-to-PROFINET gateway, -40 to +75C operating temperature

Price on request * - With the selected configuration ()
pcs.
To order
COM Total:
1
RS-232/422/485:
1
Total Ethernet:
2
Type 10/100 Mbit/s:
2xRJ-45
EtherNet/IP:
Adapter (Slave)
PROFINET I/O:
Slave
Modbus TCP:
Slave, Master
Modbus RTU:
Slave, Master
Specification
Vendor
Name:
MOXA
Construction
Construction Chassis:
Metal Chassis
Mounting Configuration:
Wall, DIN-Rail mount
Protection Level of Chassis:
IP30
Interfaces
COM Total:
1
RS-232/422/485:
1
Maximum Transfer Rate RS-232/422/485:
921600 Bit/s
RS-232/422/485 with Isolation:
2000 V
COM Connector:
1xDB9M
Network Adapter
Total Ethernet:
2 (1 IP address, supports Ethernet cascading)
10/100 Mbit/s:
2 (1 IP address, supports Ethernet cascading)
Type 10/100 Mbit/s:
2xRJ-45
Network Technology
Protocol:
EtherNet/IP, SMTP, SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet, PROFINET, UDP, DNS, NTP, ARP, DHCP Client, TCP/IP, Modbus TCP
Industrial Protocols
EtherNet/IP:
Adapter (Slave)
PROFINET I/O:
Slave
Modbus TCP:
Slave, Master
Modbus RTU:
Slave, Master
Digital Output
Total channels of digital output:
1
Type:
Signal Relay
Cooling
Type:
Fanless
LED / Controls
Setup of Operation Mode:
Console Port, By Switches, Web-interface
System Power Input
Input Voltage DC:
12 ... 48 V
Power Consumption:
5.4 W
Current:
455 mA (@ 12 VDC)
Power Supply Reserve input Voltage DC:
12 ... 48 V
Power Consumption Reserve:
5.4 W
Current Reserve:
455 mA (@ 12 VDC)
Operating Conditions
Temperature:
-40 ... 75 °C
Humidity:
5 ... 95 %
MTBF:
859422 h
Storage Conditions
Temperature Range:
-40 ... 85 °C
Humidity:
5 ... 95 %
Dimensions and weight
Width:
36 mm
Height:
105 mm
Depth:
134 mm
Standards and Certifications
Vibration And Shock:
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Freefall:
IEC 60068-2-32
Safety:
UL 508, EN 60950-1
EMS:
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
EMI:
CISPR 22 Class, FCC Part 15 Subpart B Class B
Oil And Gas:
ATEX Zone 2 Ex nC IIC
Explosion safety:
IECEx
Options

Configuration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Price on request ()
Accessories Price costs
not installed
Mini DB9 Female to Terminal Block

Dimensions

Weight

weight brutto: 0.675 kg
weight netto: 0.5 kg
