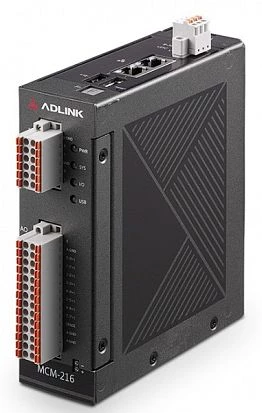

Standalone Ethernet DAQ with 16-ch AI, 16-bit, 250kS/s, 4-ch DI/O, ARM Cortex-A9 CPU, 9-30VDC-in
MCM-216
SKU: 09768000
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
16
Number of Bits
16 Bit
Voltage range
+/-1.25 V, +/-2.5 V, +/-10 V
Sampling rate
250 Hz
Single-Ended channels
16
Differential channels
8
Analog Output
Channels of analog input
2
DAC Bit Rate
16 Bit
Voltage range
+/-10 V
Current range
0...20 mA
Digital Input
Total channels of digital input
4
Digital Output
Total channels of digital output
4
Type
Open collector
System Power Input
Input Voltage DC
9..30 V
Dimensions and weight
Width
40 mm
Depth
110.5 mm
Height
126.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Dimensions
Net Weight
0.5 kg
Gross Weight
0.5 kg
