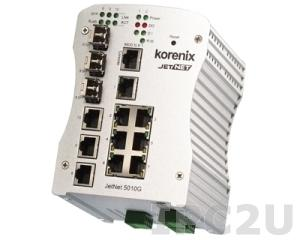

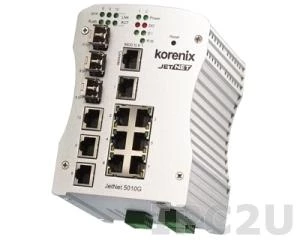

Korenix Industrial Managed Gigabit 7x10/100 Base-TX Ethernet Ring Switch and 3x1000Base-TX /100Base-FX Combo Ports (SFP connector), Support Modbus
JetNet 5010G
KORENIX
SKU: 03737900
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
10
10/100 Mbit/s
7
Switch Properties
Managed
Yes
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
96 mm
Depth
119 mm
Height
137 mm
Standards and Certifications
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.92 kg
