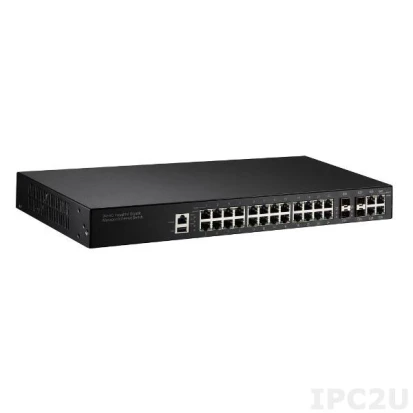

JetNet-5428G-2DC-v2
KORENIX
SKU: 56572800
1U Rackmount Industrial Managed Ethernet Switch 24x10/100 Base-TX Ports, 4xGbit RJ45/SFP Combo Ports, USB configuration, 18-75VDC
End-of-life product
Ethernet
10/100 Mbit/s
24
10/100/1000 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Panel
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
438 mm
Depth
170 mm
Height
44 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 61000-4-11
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2.65 kg
Ethernet
10/100 Mbit/s
24
10/100/1000 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
