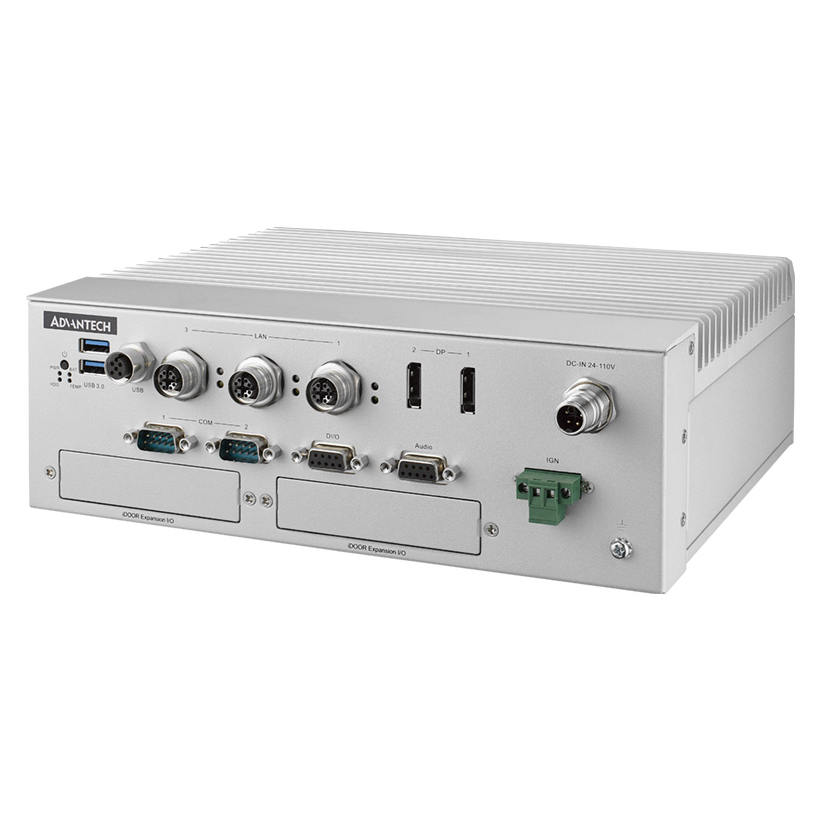

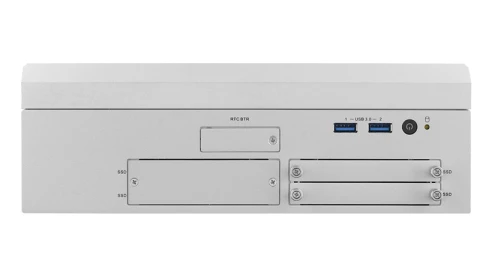

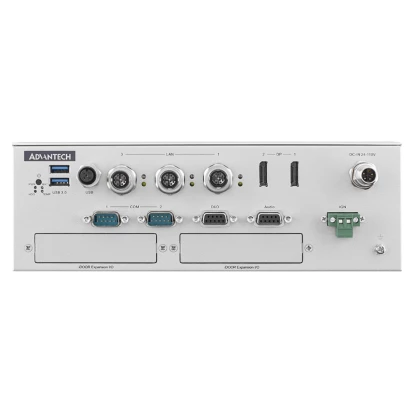

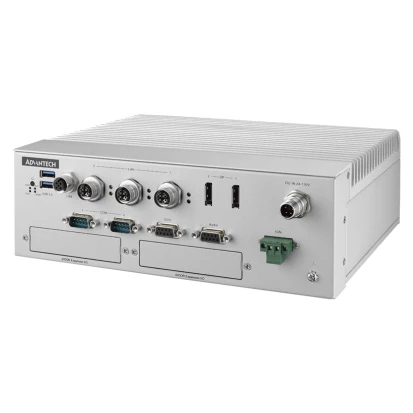

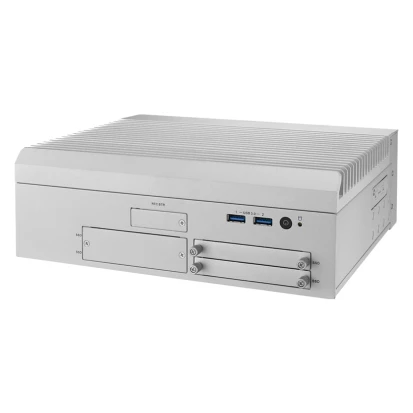

Fanless Railway PC, Intel Core i7-11850HE CPU, 16GB DDR4 RAM, 2xDP, 3x2.5GbE M12 LAN, 2xCOM, 4xUSB 3.2, 1xUSB 2.0 M12, 1x8-bit DIO, Audio DB9, 4x2.5" Drive Bay, 2xMiniPCIe, 2xM.2 3042/52 Key-B, 1xM.2 2230 Key-E, 1xPCIe x16, 24-110VDC-in M12, -40..70C
ITA-580-W7A2
Advantech
SKU: 80039400
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i7-11850HE
Socket
FCBGA1787
Max CPU frequency
4.7 GHz
Chipset
Chipset
Intel RM590E
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xDisplayPort
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Digital Input
Isolation DIO
Yes
Drive interfaces
SATA 3
4
RAID Levels
0, 1, 5, 10
mSATA
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
6
PCI Express x16
1
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 4, Micro-SIM
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Battеry Status, 2xLED temp, Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xDB9, 3xUSB, 2xDisplayPort, 3xM12, DB9 DIO, M12 USB, M12 DC-in
System Power Input
Input Voltage DC
24..110 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
260 mm
Height
88 mm
Depth
197.2 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-4, EN 50121-3-2
Rolling Stock
EN 50155
Safety
CCC, CB, UL, BSMI
Vibration And Shock
IEC 61373
Dimensions
Net Weight
4.5 kg
Gross Weight
5.3 kg
