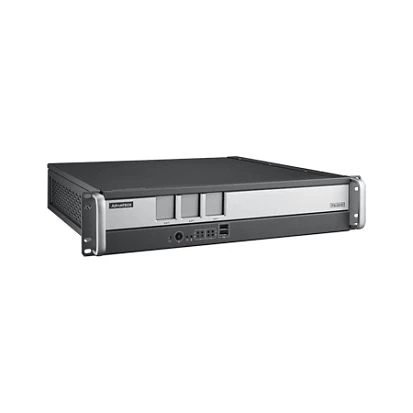

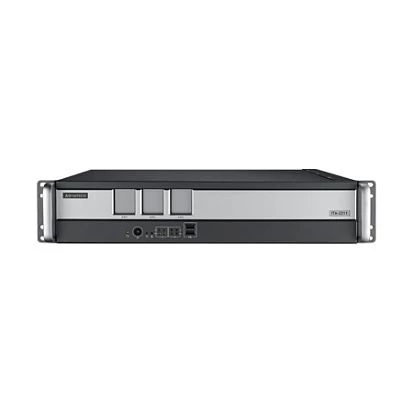

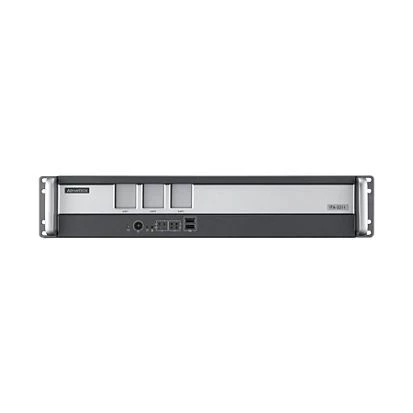

ITA-2211-00A1E

2U Fanless Railway System with Intel Atom E3845 1.91GHz, 4Gb DDR3, 1x3.5" or 2x2.5" HDD bay, VGA/DVI-D, 2xGbE LAN, 7xUSB, 2xCOM, 1xGPIO, 3xITAM, 1xPC/104+, 1xMini PCIe, single AC DC power input

This product is not available in your region
Vendor:
ADVANTECH
Construction Chassis:
Aluminium Chassis
Height:
2 U
Processor Installed:
Intel Atom E3845
Frequency:
1.91 GHz
Chipset:
Intel Atom SoC
Memory Type:
DDR3 1333
Default on Board Memory:
4 GB
Total Ethernet:
2
Specification
Vendor
Name:
ADVANTECH
Construction
Construction Chassis:
Aluminium Chassis
Mounting Configuration:
19" Rackmount
Height:
2 U
CPU
Processor Installed:
Intel Atom E3845
Frequency:
1.91 GHz
Chipset
Chipset:
Intel Atom SoC
Memory
Memory Type:
DDR3 1333
Default on Board Memory:
4 GB
Maximum Memory:
8 GB
Graphic
Graphic Controller:
Integrated in Chipset
Interfaces:
DVI-D, VGA
Storage Cage
Number Of Cage External:
1
3.5" Cage Intenal:
1
Storage
mSATA Support:
Yes
Network Adapter
Controller Type:
Intel i210-IT
Total Ethernet:
2
10/100/1000 Mbit/s:
2
Interfaces
COM Total:
2
RS-232/422/485:
2
USB Total:
7
USB 2.0:
6
USB 3.0:
1
Watchdog
Programmable:
Yes
Reaction Time:
1-255 sec/min
Extension Slots
Total:
5 (3 ITAM slots, 1 PCI104 slot)
Mini-PCIe/Mini Card:
1
Cooling
Type:
Fanless
Audio
Audio Type:
Built-in Chipset
Audio Output:
Built-in Speaker (4W)
Audio Input:
External Microphone Input
Connectors / Cables
Connectors:

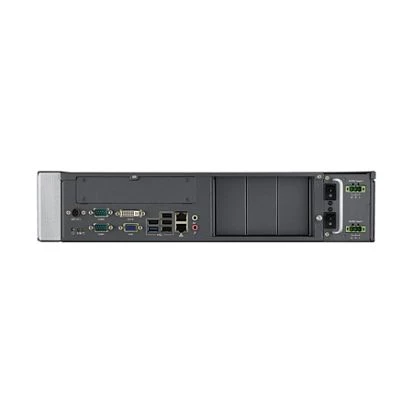

2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 7xUSB, Mic In, Line Out, DC Input, AC Input
System Power Input
Input Voltage DC:
110 ... 110 V
Input Voltage AC:
100 ... 240 V
Operating Conditions
Temperature:
-25 ... 60 °C
Dimensions and weight
Width:
483 mm
Height:
88 mm
Depth:
325 mm
Standards and Certifications
Certifications:
CE, FCC Class A
Documentation

Dimensions

Weight

weight brutto: 10 kg
weight netto: 8 kg
