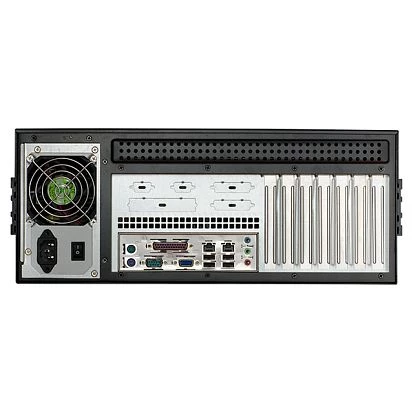

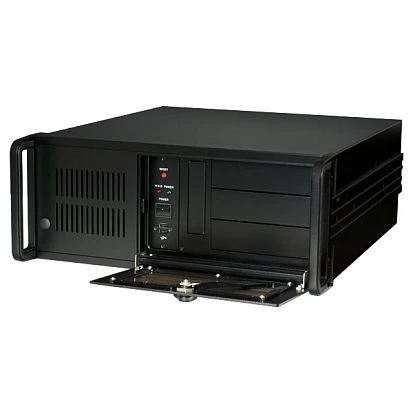

iROBO-4845G-ISA

4U Rackmount Industrie Computer, Intel Pentium 4 2.4GHz CPU, Intel 845GV Chipset, 512MB DDR1 RAM, VGA, 4xUSB2.0, 2x LAN, 1xRS232, 4xPCI, 3xISA (support Master ISA), 500W PSU (Limitierte Produktion)

Price on request * - With the selected configuration ()
pcs.
To order
Vendor:
IPC2U GmbH
Height:
4 U
Processor Installed:
Intel Pentium
Frequency:
2.4 GHz
Memory Type:
DDR RAM
Total Ethernet:
2
COM Total:
4
Specification
Vendor
Name:
IPC2U GmbH
Construction
Mounting Configuration:
19" Rackmount
Height:
4 U
CPU
Processor Installed:
Intel Pentium (Pentium 4)
Frequency:
2.4 GHz
Memory
Memory Type:
DDR RAM
Maximum Memory:
1 GB
Graphic
Interfaces:
VGA
Network Adapter
Total Ethernet:
2
10/100/1000 Mbit/s:
1
10/100 Mbit/s:
1
Interfaces
COM Total:
4
USB 2.0:
6
Digital Input-Output
Channels of DI:
4
Channels of DO:
4
Extension Slots
ISA:
3
PCI:
4
Connectors / Cables
Connectors:
DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB
Software
Operating System Compatibility:
Windows XP, Windows NT, Windows 2000
Operating Conditions
Temperature:
0 ... 50 °C
Humidity:
10 ... 90 %
Dimensions and weight
Width:
483 mm
Height:
177 mm
Depth:
451 mm
Standards and Certifications
Certifications:
CE, FCC
Options

Configuration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Price on request ()
RAM Price costs
512MB Apacer Memory DDR1 DIMM 400MHz Non-ECC 1R 64Mx8, IC PM, Standard Temperature 0..+85C
HDD SATA 3.5" Price costs
128GB 2.5" Innodisk SSD 3MG2-P, SATA 3, MLC, IC Toshiba, R/W 520 / 180 MB/s, Standard Temperature 0..+70 C
256GB Innodisk 2.5" 3MG2-P SSD, SATA 3, MLC, IC Toshiba, High IOPS, R/W 520/350 MB/s, Standard Temperature 0...+70 C
1TB 3.5" WD Gold 24x7, SATA3, 7.2k rpm, 128MB Cache HDD
128GB Intel SSD 2.5", 545s Series, 3D TLC, SATA 3, R/W 550/440 MB/s, 72TBW, MTBF 1.6mill. h., Operating Temperature 0..70C
256GB Intel SSD 2.5", 545s Series, 3D TLC, SATA 3, R/W 550/500 MB/s, 144TBW, MTBF 1.6mill. h., Operating Temperature 0..70C
Sliding Rails Price costs
not installed
20" Rackmount Slide Rails for 19" Chassis, max. depth 20"
Documentation

Dimensions

Weight

weight brutto: 20.5 kg
