iROBO-40425-19Q
Industrial Personal Computer 2U GmbH
SKU: 56886700

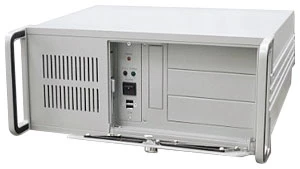

4U Rackmount Industrial Computer, Intel Core i5-6500 3.5GHz Skylake CPU, Intel C236 Chipset, 4GB DDR4 RAM (max.64GB), 500GB HDD, DVI-D, 2xDP, 2xGbit LAN, RS232, 10xUSB, 1xPCIe x16 / 2xPCIe x4 / 2x PCIe x1 / 2xPCI Slots, 500W PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
4 U
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i5-6500TE
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel C236
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
64 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
RS-232
1
USB Total
10
Installed drive
Drive Type
HDD
Storage Form-Factor
3.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Extension Slots
PCI Express x16
1
PCI Express x1
2
PCI
2
Connectors
Connectors
DB9, DVI-D, 2xRJ45 Ethernet, 10xUSB, 2xDisplayPort
Power Supply
Output Power
500 W
Input Voltage AC
90..264 V
Dimensions and weight
Width
483 mm
Height
177 mm
Depth
451 mm
Operating Conditions
Operating Temperature
0..50 °C
Available until
Q4 2029, based on Intel IOTG Roadmap
Dimensions
Gross Weight
20.5 kg
