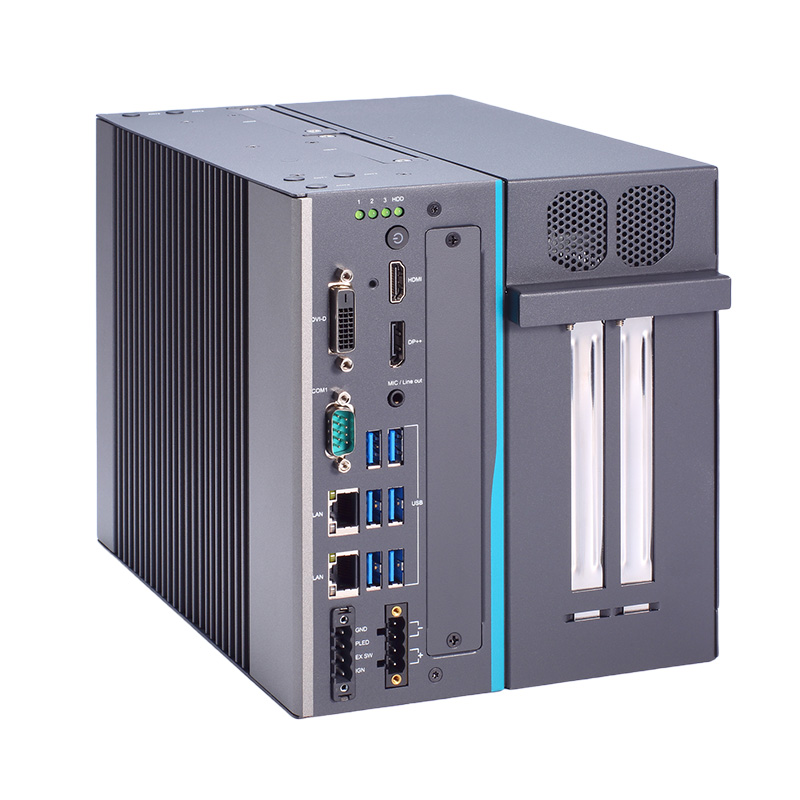

4-slot fanless embedded system with LGA1700 Intel Core i7/ i5/ i3 Processor 12th gen, Intel Q670E, DDR5, DP++, HDMI, DVI-D, 1x2.5GbE LAN, 1xGbE LAN, 1xCOM, 6xUSB 3.2, 1xUSB 2.0, 2x2.5" HDD, M.2 Key M 2280, 2xPCIe, 18-36VDC-in
IPC962A-Q-E1F5
AXIOMTEK
SKU: 10775900
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
7
USB 2.0
1
USB v3.x
6
Audio
Audio Controller
Intel HD Audio
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
PCI Express x16
1
PCI Express x8
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Internal Ports
USB 2.0
Connectors
DB9, DVI-D, HDMI, 2xRJ45, 6xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
18..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
170 mm
Height
192 mm
Depth
260 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
IEC 60068-2-64 (with SSD: 1Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.1 kg
Gross Weight
6.2 kg
