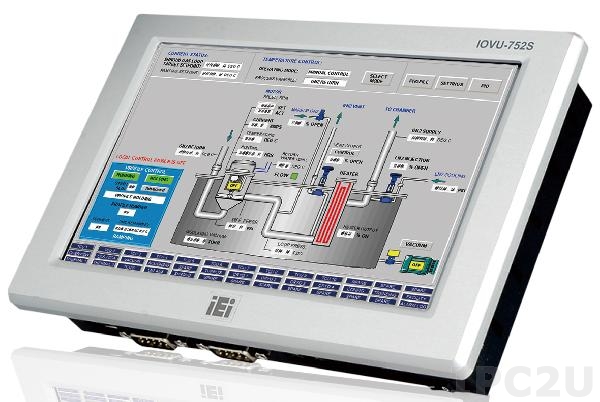

IOVU-752S-CE6/-R10

7" WVGA LCD Fanless Touch Panel Computer with Samsung S3C6410 ARM11 677MHz CPU, 256MB DDR2, LAN, PoE, 2xCOM, 2xUSB, Audio, WinCE 6.0

Not available
Vendor:
IEI
Construction Chassis:
Aluminium Chassis
Protection Level of Front Side (Panel):
IP64
Display Type:
LCD TFT
Diagonal:
7 "
Maximum Resolution:
800 x 480 Dots
Touch Screen Type:
Resistive
Processor Installed:
Samsung S3C6410 ARM11
Frequency:
677 MHz
Specification
Vendor
Name:
IEI
Construction
Construction Chassis:
Aluminium Chassis
Mounting Configuration:
Panel, Wall VESA 75
Material Front Side (Panel):
Aluminum
Protection Level of Front Side (Panel):
IP64
Display
Display Type:
LCD TFT
Diagonal:
7 "
Maximum Resolution:
800 x 480 Dots
Brightness:
500 Cd/m2
Touch Screen
Touch Screen Type:
Resistive
CPU
Processor Installed:
Samsung S3C6410 ARM11
Frequency:
677 MHz
Memory
Memory Type:
DDR2 RAM
Default on Board Memory:
256 MB
Graphic
Graphic Controller:
Integrated in CPU
Storage
Capacity One Preinstalled HDD:
128 MB (Nand Flash)
Support SD:
Yes
Interfaces
COM Total:
2
RS-232:
1
RS-232/422/485:
1
USB Total:
2
USB 2.0:
2
Network Adapter
Total Ethernet:
1
10/100 Mbit/s:
1 (PoE Support)
Audio
Audio Output:
Built-in Speaker (2x 1.5W speaker)
Cooling
Type:
Fanless
LED / Controls
LED:
Power LED
Control Switches:
On/Off, 1xReset
Connectors / Cables
Connectors:
2xDB9, RJ45, 2xUSB, DC Input, DC input (terminal block)
Watchdog
Programmable:
Yes
System Power Input
Input Voltage DC:
6 ... 30 V
Power Consumption:
14 W
Power Supply
Supported Types of Power Supply:
External power adapter AC/DC
Software
Operating System Installed:
Windows CE 6.0
Operating Conditions
Temperature:
-10 ... 60 °C
Humidity:
5 ... 90 %
Vibration:
10~500Hz, 60min/axis (Vertical / Transverse / Longitudinal)
Shock:
Equivalent to Z: 2.18Grms, X: 1.6Grms, Y: 1.96Grms
Dimensions and weight
Width:
188 mm
Height:
124 mm
Depth:
40 mm
Documentation
IOVU-752S (PDF)

Dimensions

Weight

weight brutto: 1.5 kg
