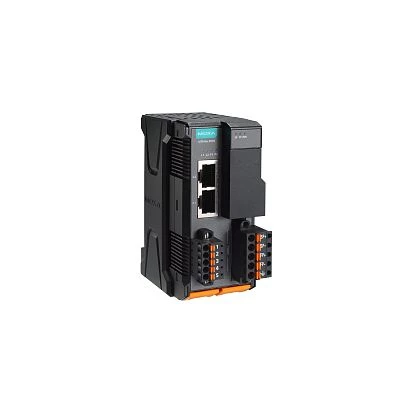

ioThinx 4510
MOXA
SKU: 08117400
Communication Gateway, 2xRJ-45 LAN, 1xRS-232/422 or 2xRS-485
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Expansion Module
Quantity of Slots
32
Supported Module
45MR series
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-485
2
RS-232/422
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, MQTT client
Dimensions and weight
Width
42.3 mm
Depth
75 mm
Height
99 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
EMI
EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 61000-6-2, EN 61000-6-4, EN 55032
Safety
UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.31 kg
Gross Weight
0.31 kg
