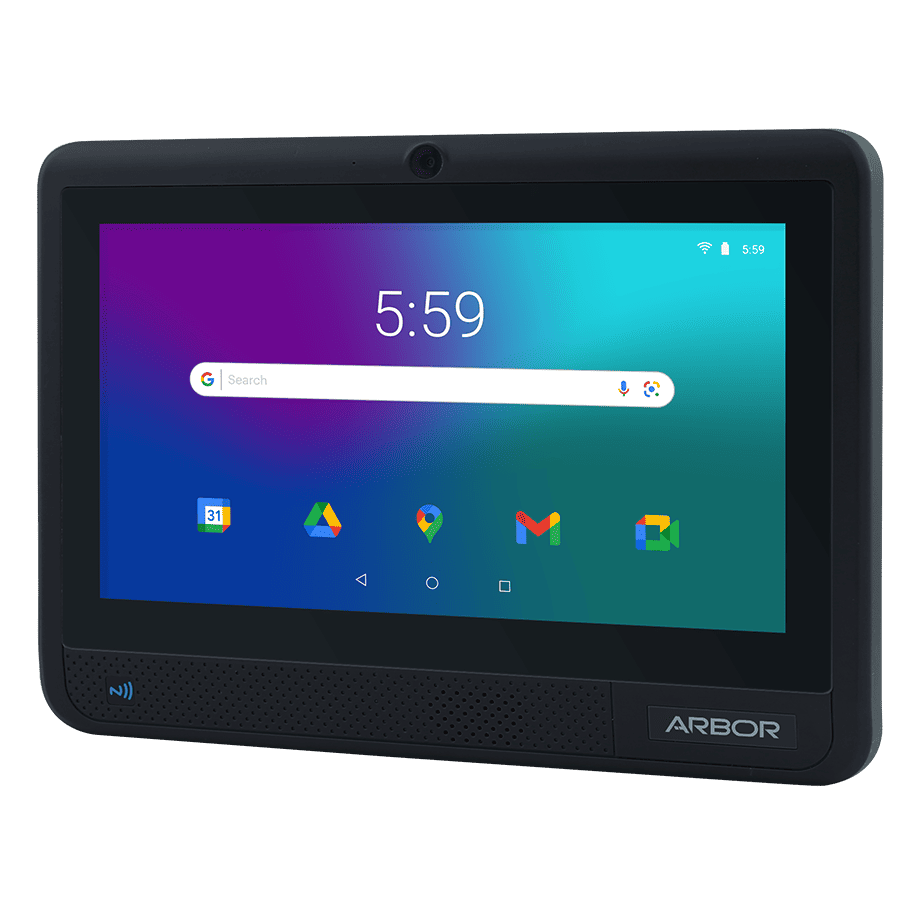

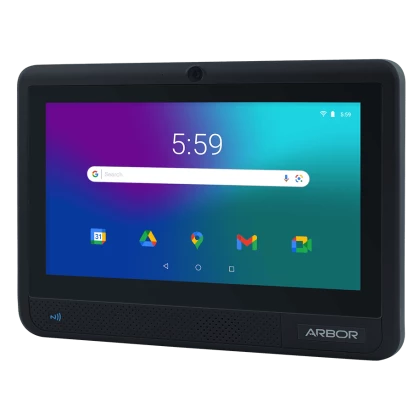

8" Fanless Panel PC, 1024x600, PCAP Touch, 450cd/m2, MediaTek Genio 350 SoC, 4GB LPDDR4x RAM, 64GB eMMC Flash, 1x100Mbit LAN, 2xUSB 2.0, 1xMicroUSB, 2xCOM, 6-bit DIO, CAN, MicroSD, Wi-Fi5/BT5/GPS, RFID/NFC, Mic/Audio, 9-36VDC-in, -20..70C, Android 13
IOT-800N-G350
Arbor
SKU: 80061300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1024x600 Dots
Brightness
450 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
MediaTek MT8365 (Genio 350)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Digital Input-Output
Channels of DIO
6
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
Connectors
Connectors
2xDB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
218.16 mm
Height
162.67 mm
Depth
46.5 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Dimensions
Net Weight
0.94 kg
Gross Weight
1.3 kg
