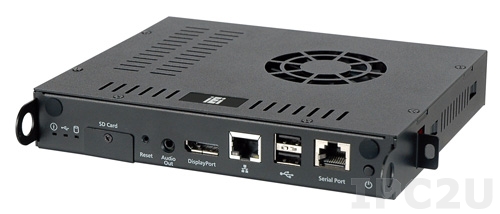

IOPS-H61-C-4GB
IEI
SKU: 06406600
OPS Module PC, Intel Celeron G530 2.4GHz, 4GB DDR3 SO-DIMM pre-installed, DisplayPort, TDP 65W, mSATA 32GB, Intel GbE, JAE 80-pin connector, USB2.0, COM, SDHC card slot, HD Audio
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded
Type
Fan
CPU
Processor Installed
Intel Celeron G530T
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel H61
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel 82579LM 10/100/1000Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
32 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
RJ45, RJ45 Ethernet, 2xUSB, Audio Out, Display Port
System Power Input
Input Voltage DC
12..19 V
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7
Dimensions and weight
Width
200 mm
Height
171 mm
Depth
30 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810F Test Method 514.5C-2 Vibration
Dimensions
Net Weight
1.2 kg
Gross Weight
2.4 kg
