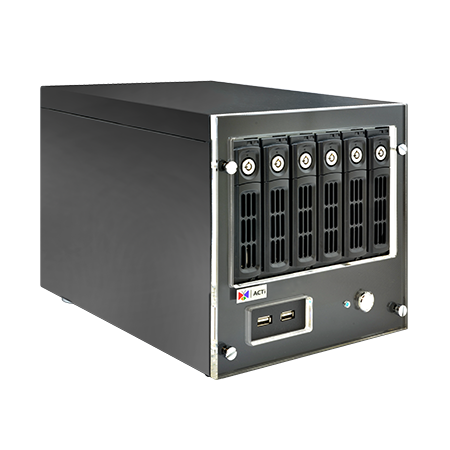

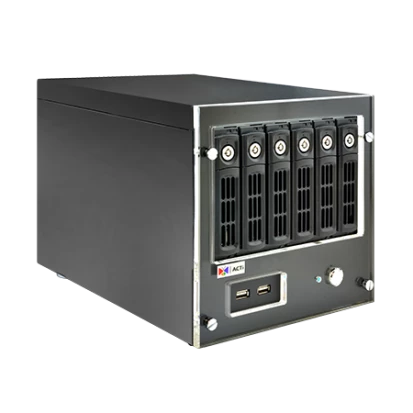

INR-320

64-Channel 6-Bay RAID Tower Standalone NVR with Recording Throughput 300 Mbps, Instant Playback, e-Map, VGA Port for 1080p Display, Remote Access, Video Export, 64-Ch Synch Playback, Supports eSATA, iSCSI, USB, AC 110-240V

Price on request ()
Specification
Vendor
Name:
Acti
Network Video Recorder (NVR)
Number of Video Channels:
64
Free License:
32
Max. Resolution:
10 MP
Video Compression Method:
H.264, MPEG-4, MJPEG
Maximum Recording Frame Rate:
30 fps (per canal)
Maximum Recording Bit Rate:
300 Mbit/s
Multi-Streaming:
2
Stream Management:
stream 1 or stream 2 of dual stream devices
Mode:
Manual recording, Continuous recording, Scheduled recording, Event recording
RAID Level:
0, 1, 5, 10 (Hardware RAID)
External Storage Interface:
USB, eSATA, iSCSI
Playback Control:
forward and backward playback with adjustable speeds, pause, stop
Display Layout Mode:
1, 4, 6, 8, 9, 10, 12, 16 (Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64)
Synchronized Playback:
9 (for local display; 64 channels for remote client)
Live View:
Yes (up to 16 channels for local display; up to 64 channels for remote client )
Digital Zoom:
Yes
Search Mode:
Video Channel, Date & Time (Calendar), Event log list
Manual Snapshot:
Yes (manually)
eMap:
Yes
Video Cropping:
Yes
Intelligent Video Analytics:
Motion detection, Camera tampering
Event Trigger:
Intelligent video, Network loss, Network recovery, Passive IR sensor, Disk full, Disk not found, Video loss
Event Response:
Record video, Play audio file or Beep, Pop-up window, Go to PTZ preset point, Send snapshot image via E-mail or FTP, Command to activate other programs
Local Access:
USB, Keyboard, Mouse, VGA
Remote Access:
PC Web Browser, Mobile Client Program, Workstation
Video clip export format:
AVI, RAW (Text overlay supported)
Maximum Display Resolution (Local display):
1920 x 1200 Px
Maximum Number of Local Clients:
1
Maximum Number of Remote Clients:
4
PTZ
Protocol:
ACTi URL command, Sony Visca, Pelco D, Pelco P, Dynacolor
Preset points:
32
Storage
2.5" Drive Bays:
SATA 2
Quantity of HDD:
6 (1 bay is occupied by system HDD)
Capacity One Preinstalled HDD:
500 GB (Seagate 3.5'' SATA HDD)
Network Adapter
10/100/1000 Mbit/s:
2
Type 10/100/1000 Mbit/s:
RJ-45
Type Ethernet:
1000BASE-T
Network Technology
ONVIF Conformance:
ONVIF ProfileS
Software
Operating System Installed:
Windows Embedded Standard 7
Web Browser:
IE 8, IE 9, IE 10
Mobile Client Supported devices:
iPhone, iPad, iTouch, Android
Interfaces
USB 2.0:
6
LED / Controls
LED:
Power LED
Control Switches:
On/Off
Connectors / Cables
Connectors:
DB15 VGA, 2xRJ45, 6xUSB, Audio (in/out/Mic), AC Input, eSATA
System Power Input
Input Voltage AC:
100 ... 220 V
Operating Conditions
Temperature:
0 ... 40 °C
Humidity:
10 ... 85 % (non-condensing)
Construction
Mounting Configuration:
Desktop
Dimensions and weight
Width:
214 mm
Height:
218 mm
Depth:
313 mm
Weight:
6 kg
Standards and Certifications
Certifications:
CE, FCC
EMI:
EN 55024, EN 55022 Class B, FCC Part 15 Subpart B Class B

Dimensions

Weight

weight brutto: 4 kg
