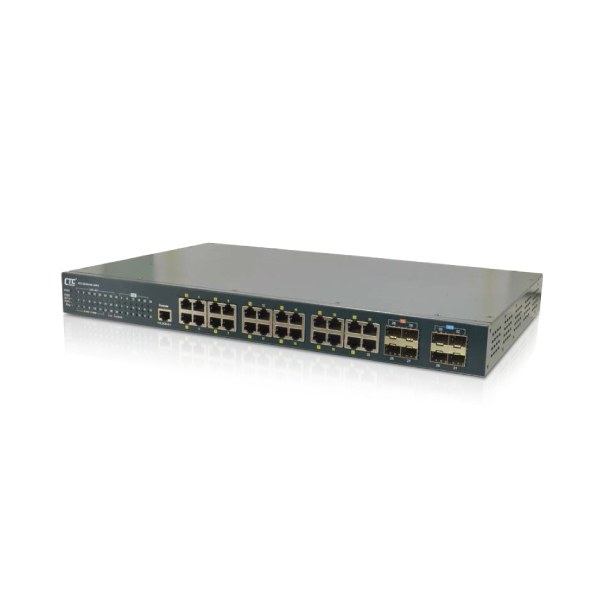

Industrial Managed Layer 2 PoE Switch with 24x 1000 Base-TX Ports with PoE, 4x Base X SFP ports, 4x 10GbE SFP+ ports, 4kV surge protection,Redundant dual 48VDC input power, -40..+60C Operating Temperature
ICS-G24044X-24PH
CTC Union
SKU: 56733500
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
24
10 Gbit/s
4
SFP 100/1000 Mbit Ports
4
PoE+ 10/100/1000 Mbit/s
24
Interfaces
RS-232
1
Switch Properties
Switch Level
Layer 2
Supported Protocols
Industrial Protocols
Modbus TCP
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, TFTP
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
44 mm
Depth
280 mm
Height
440 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15, EN 61000-6-4
EMS
IEC 61000-6-2, EN 55024, EN 61000-6-4, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
4.7 kg
Gross Weight
5.87 kg
