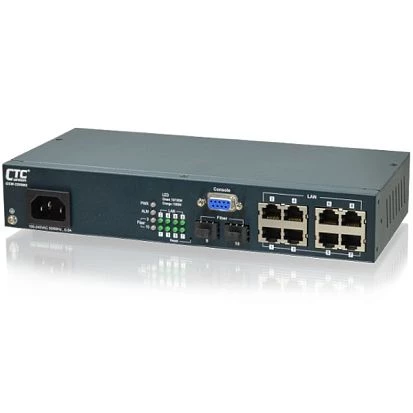

Managed Gigabit L2 Ethernet Switch with 8x 1000 Base-T Ports, 2x 100/1000 SFP Ports, 100-240VAC or 18-60VDC Input Power, 0...50C Operating Temperature
GSW-3208M2
CTC Union
SKU: 56092500
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xRJ-45
SFP 100/1000 Mbit Ports
2
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Syslog, DNS, DHCP, RMON, IGMPv1/v2/v3
Security Protocols
HTTPS, SSH, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
LED / Controls
Setup of Operation Mode
Console Port, By Switches, Web-interface
System Power Input
Input Voltage DC
18..60 V
Input Voltage AC
100..240 V
Construction
Mounting Configuration
Desktop, 19" Rackmount
Dimensions and weight
Width
250 mm
Depth
117 mm
Height
43.8 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.9 kg
Gross Weight
1.8 kg
Documentation
