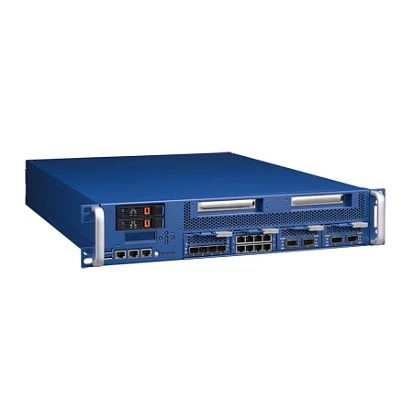

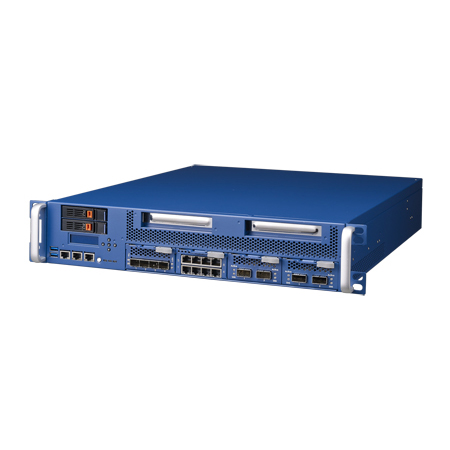

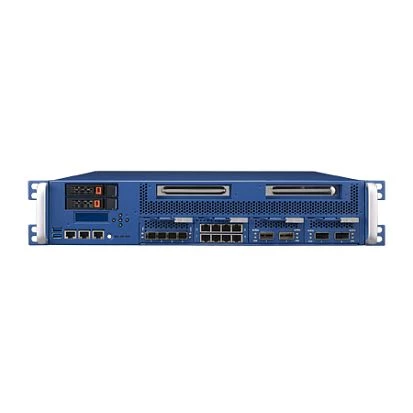

2U Rackmount Processor-based Platform, support 2xIntel Xeon E5-2600 v3, Intel C612, Up to 512GB DDR4 DIMM, 2xLAN, Up to 8 x NMC, 2x2.5" hot-swap SATA HDD/SSD, 2 x PCIe x16, Power Supply 820W (1+1 redundant)
FWA-6520-01E
Advantech
SKU: 07187000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
2 U
Type
Fans
CPU
CPU Support Type
Xeon
Number of CPU
2
Chipset
Chipset
Intel C612
Memory
Form-factor
DDR4
Socket Type
16xDIMM
ECC
Yes
Maximum Memory
512 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
2
PCI Express x16
2
LED / Controls
LED
1xHDD LED, 1xOn/Off LED
Controls
On/Off, Control Buttons
Setup of Operation Mode
Console Port, Buttons for Setting up and Displaying Status
Connectors
Connectors
2xRJ45 Ethernet, 2xUSB, 2xAC Input, RJ45 (Console)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Industrial, Redundant, Internal
Output Power
820 W
Quantity of Power Modules
2
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
430 mm
Height
88 mm
Depth
558 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
0.3 Grms
Shock
10G
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
19.05 kg
Gross Weight
22.05 kg
