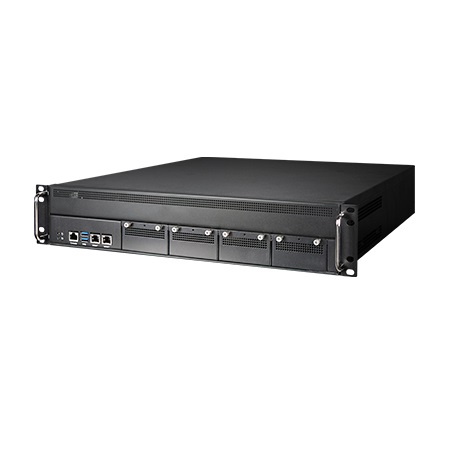

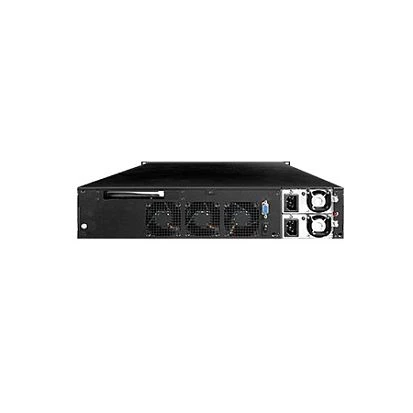

2U Rackmount Processor-based Platform, support Intel Core i3/i5/i7 6th/7th Gen, Xeon E3 v5/v6, C236, 4x288-pin DDR4 2133/2400MHz UDIMM up to 64 Gb ECC, 2xGbE LAN, 2x3.5" SATA, 4xNMC, 2xUSB 3.0, 1xmSATA, power supply (1+1) 300 W
FWA-4130L-0000E
Advantech
SKU: 08008700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
2 U
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium, Xeon
Chipset
Chipset
Intel C236
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
Yes
Maximum Memory
64 GB
Graphic
Interfaces
DVI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
3.5" Cage Intenal
2
Extension Slots
Total
2
PCI Express x8
1
PCI Express x4
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xRJ45 Ethernet, 2xUSB, AC Input, Console Port RS-232 (RJ-45)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Redundant
Output Power
300 W
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
438 mm
Height
88 mm
Depth
520 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC
EMI
CCC (GB9254, GB 17625.1)
Dimensions
Net Weight
14 kg
Gross Weight
15 kg
