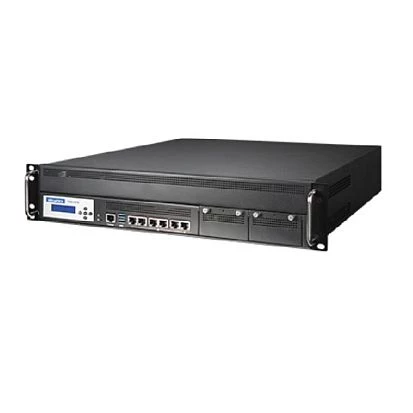

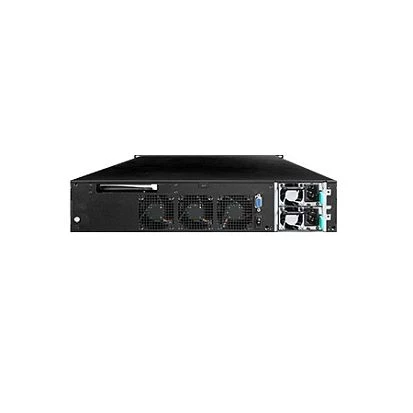

2U Rackmount Processor-based Platform, support Inte Core i3/i5/i7 6th Gen, Xeon E3-1200 v5/v6, H110, 2x288-pin DDR4 2133/2400MHz UDIMM ECC, HDMI, DVI, 6xGbE/2x bypass, 2x3.5" SATA, 1xNMC, 2xUSB 3.0, 1xmSATA, power supply 300 W AC
FWA-4030HL-00A1S
Advantech
SKU: 08008300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
2 U
Type
Fans
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium, Xeon
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xDIMM
ECC
Yes
Graphic
Interfaces
DVI, HDMI
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
6
10/100/1000 Mbit/s
6
Interfaces
RS-232
1
USB Total
4
USB v3.x
2
Drive interfaces
mSATA
1
CFast Slots
1
CompactFlash Slots
1
Storage Cage
Number Of Cage External
4
3.5" Cage Intenal
4
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Internal Ports
2xUSB 3.0
Connectors
DB15 VGA, 6xRJ45 Ethernet, 2xUSB, Console Port RS-232 (RJ-45)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Output Power
300 W
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
438 mm
Height
88 mm
Depth
520 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC
EMI
CCC (GB9254, GB 17625.1)
Dimensions
Net Weight
20 kg
Gross Weight
22 kg
