Tabletop server, support Intel Atom C3338 2.2 GHz, 1x288-pin DIMM DDR4 up to 64 Gb ECC, 4xGbE LAN, 1xM.2 3042, 1xM.2 3042/2260/2280, 1xFull Size Mini-PCIe, 2xUSB 3.0, power 100-240 V DC, 36 W
FWA-1012VC-2CA1S
Advantech
SKU: 08010800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Height
1 U
Type
Fan
CPU
Processor Installed
Intel Atom C3338
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR4
ECC
Yes
Maximum Memory
64 GB
Ethernet
Controller Type
Marvell 88E1543 10/100/1000 Mbps
Total Ethernet
4
Interfaces
USB Total
2
USB v3.x
2
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
2, Mini-SIM
LED / Controls
LED
1xHDD LED, Power LED, LAN LED
Controls
On/Off
Connectors
Connectors

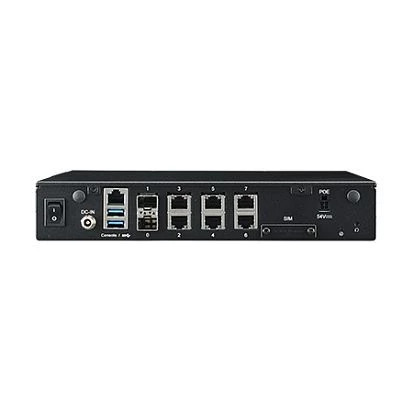

4xRJ45 Ethernet, 2xUSB, RJ45 (Console)
System Power Input
Input Voltage DC
100..240 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
250 mm
Height
44 mm
Depth
193.04 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
2.5 kg
Gross Weight
2.8 kg
Documentation
