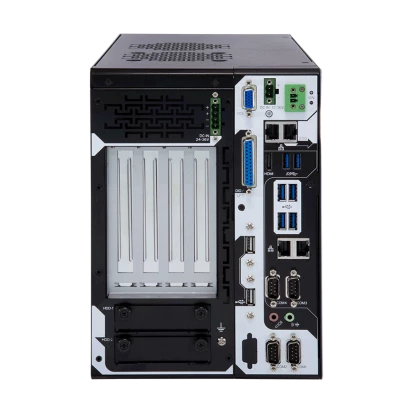

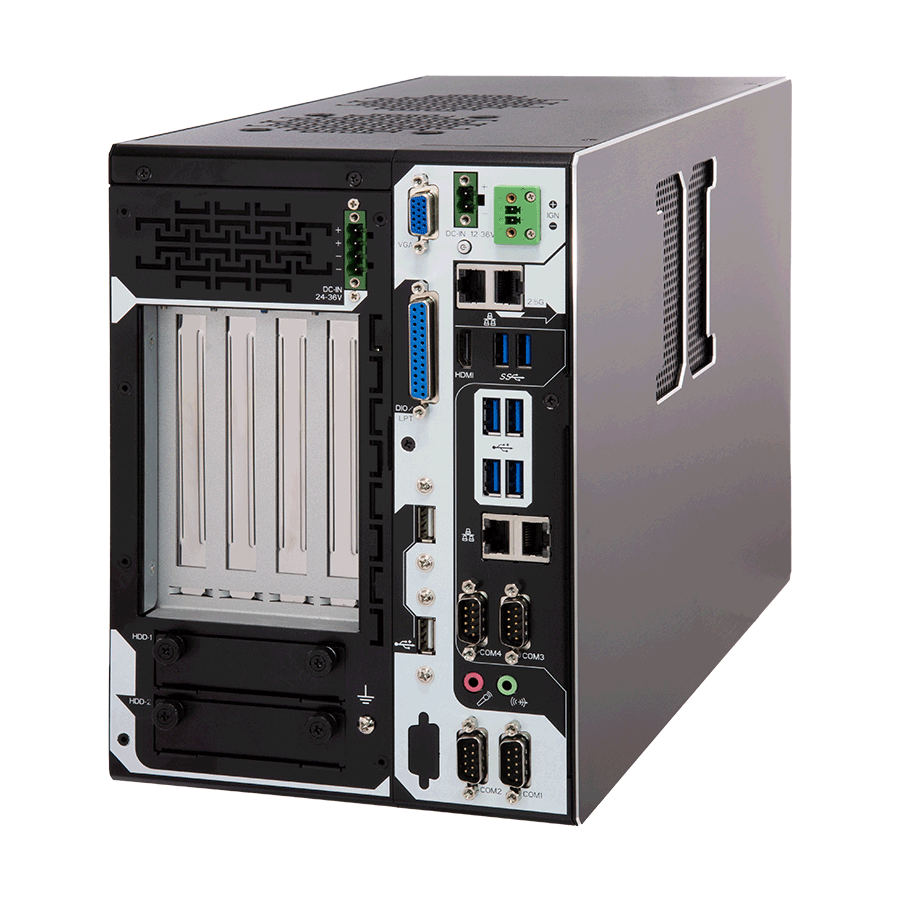

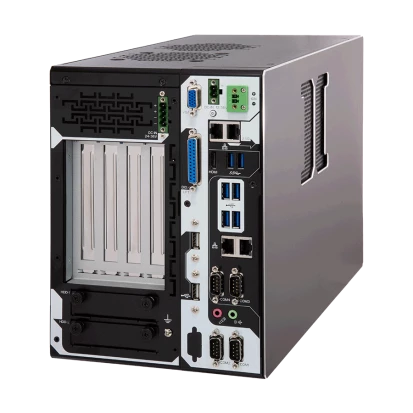

Embedded Edge AI PC, Intel 10th Gen Core i3/i5/i7/i9 CPU, Up to 64GB DDR4 RAM, HDMI/VGA, 1x2.5GbE LAN, 3xGbE LAN, 6xUSB 3.2, 2xUSB 2.0, 4xCOM, DIO, 2x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, 1xPCIe x16, 3xPCI, 12-36VDC-in (24-36V secondary)
FPC-9108-L2U4-G3
Arbor
SKU: 80061000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i3, Core i5, Core i7, Core i9, Xeon
Chipset
Chipset
Intel W480E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel WGI219LM 10/100/1000 Mbps, Intel WGI225LM
Total Ethernet
4
10/100/1000 Mbit/s
3
2,5 Gbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
7
PCI Express x16
1
M.2
2
M.2 Form Factor
2230 E, 3052 B, 2280 B, 2242 B
Mini-PCIe/Mini Card
1
PCI
3
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line Out, 1xDB25 DIO, 2xDC input (terminal block)
System Power Input
Input Voltage DC
24..36 V
Backup input DC supply voltage
12~36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows IoT Enterprise 10, Windows IoT Enterprise 11
Dimensions and weight
Width
181 mm
Height
250 mm
Depth
380 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.7 kg
Gross Weight
7.4 kg
