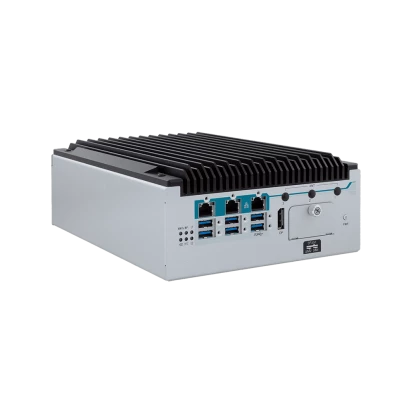

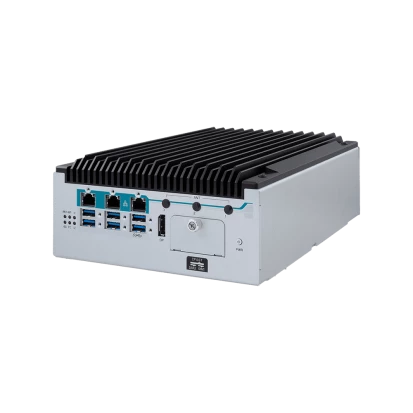

Fanless Embedded PC, Intel 13th Gen Core i3/i5/i7/i9 CPU, H610E, Up to 64GB DDR4 RAM, DP/DVI-D/VGA, 3x2.5GbE LAN, 6xUSB 3.2, 4xCOM, 16-bit DIO, CFast, 1xMiniCard, 1xM.2 2230, 1xM.2 3052, SIM, 2x2.5" Bay, 9-36VDC-In
FPC-8210
Arbor
SKU: 80011700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, VGA
Ethernet
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
4
RS-232
4
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2230 E, 3052 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, WWAN LED
Connectors
Connectors

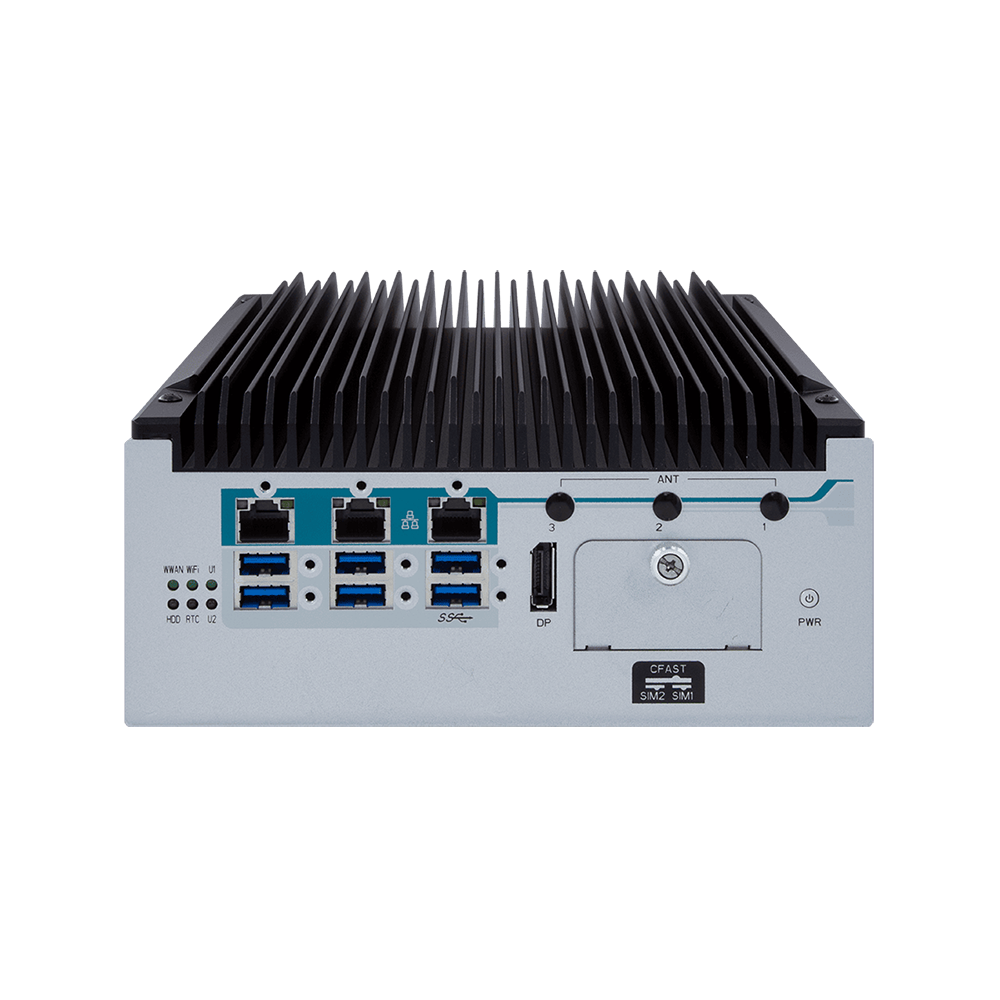

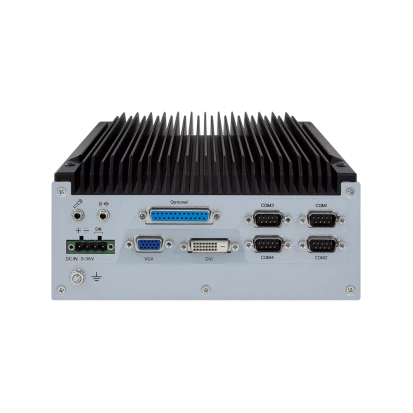

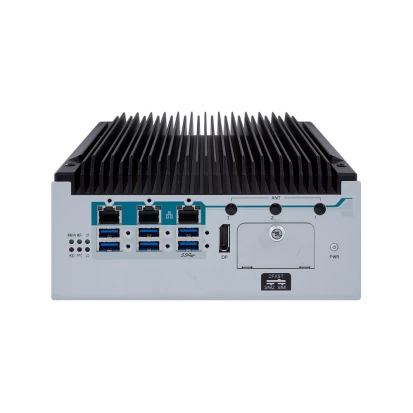

4xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 1xDB25 DIO, 2xSIM Card Slot, CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Consumption
65 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows IoT Enterprise 10, Windows IoT Enterprise 11
Dimensions and weight
Width
195 mm
Height
90 mm
Depth
268 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.2 kg
Gross Weight
4.8 kg
