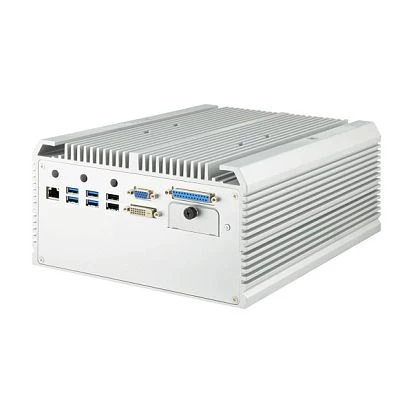

Fanless Embedded PC, Intel 10th Gen Core i3/i5/i7/i9 CPU, H420E, Up to 64GB DDR4 RAM, HDMI/DVI-D/VGA, 1x2.5GbE LAN, 2xGbE LAN, 6xUSB 3.2, 2xUSB 2.0, 6xCOM, 16-bit DIO, 1xMiniCard, 1xM.2, 2x2.5" Drive Bay, 1xPCIe x16, 1xPCI, 9-36VDC-In, -20..70C, R1.2
FPC-8101
Arbor
SKU: 10329400
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H420E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DVI-D, HDMI, VGA
Ethernet
Controller Type
Intel WGI219LM 10/100/1000 Mbps, Intel WGI225LM
Total Ethernet
3
10/100/1000 Mbit/s
2
2,5 Gbit/s
1
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Digital Input
Isolation DIO
Yes
Drive interfaces
SATA 3
2
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
4
PCI Express x16
1
M.2
1
M.2 Form Factor
2230 E
Mini-PCIe/Mini Card
1
PCI
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

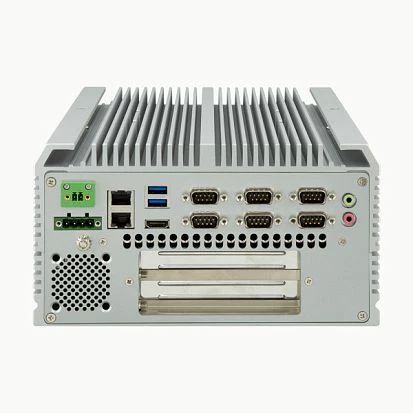

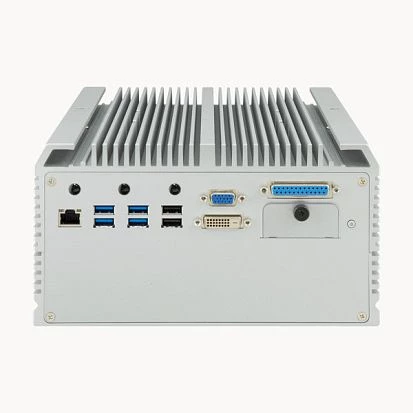

6xDB9, DVI-D, DB15 VGA, HDMI, 3xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC input (terminal block), 1xDB25 DIO
System Power Input
Input Voltage DC
9..36 V
Power Consumption
95 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows IoT Enterprise 10, Linux kernel 4.x
Dimensions and weight
Width
225 mm
Height
120 mm
Depth
295 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Vibration
3 Grms/5~500Hz/random operation w/ SSD
Shock
Operating 40G (11ms), Non-operating 60G with SSD
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
7 kg
Gross Weight
7.8 kg
