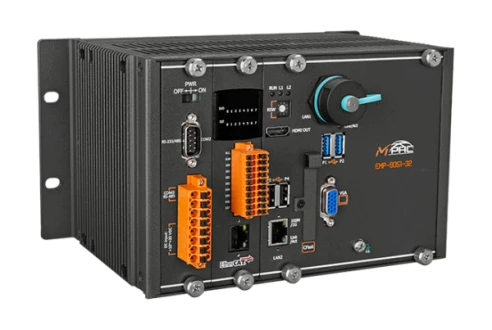

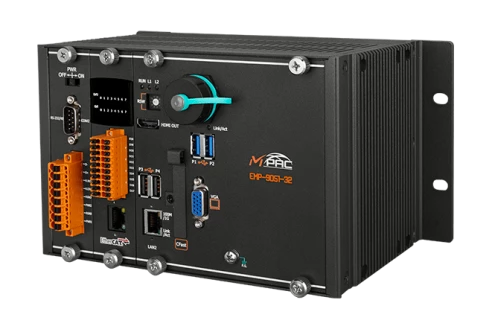

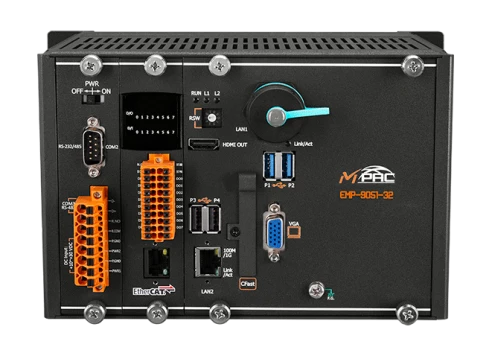

EtherCAT Master based 9000 series PAC controller, Intel Core i5-8365UE, 16GB DDR4, 64GB SSD, 32GB CF, VGA, HDMI, 2xGbE LAN, 2xCOM, 4xUSB 2.0, 8DI 19-24VDC, 8DO 24VDC, 10-30VDC-in, Win 10 IoT, no expansion slots
EMP-9051-32
ICP DAS
SKU: 09683700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Core i5-8365UE
Max CPU frequency
4.1 GHz
Memory
Default on Board Memory
16 GB
Installed drive
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
1st Storage Capacity
32 GB
Drive interfaces
CFast Slots
1
Software
Operating System Installed
Windows IoT Enterprise 10
Programming Method
C/C++
Development Software
Visual Studio .NET, VC
Digital Input
Total channels of digital input
8
Isolation of Digital Input
3000 V
Type
Wet contact
Level of Logic "0"
0~11 V
Level of Logic "1"
19~24 V
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Max. load current
1000 mA
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
EtherCAT master
Connectors
Connectors
spring clamp terminal block
Graphic
Interfaces
HDMI, VGA
Dimensions and weight
Width
239 mm
Depth
164 mm
Height
133 mm
System Power Input
Input Voltage DC
10..30 V
Power Supply Reserve input Voltage DC
10..30 V
Redundant power input
Yes
Operating Conditions
Operating Temperature
-25..60 °C
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
