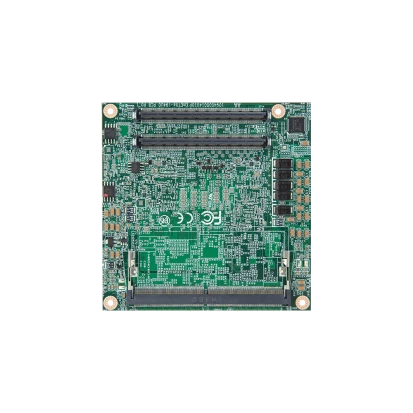

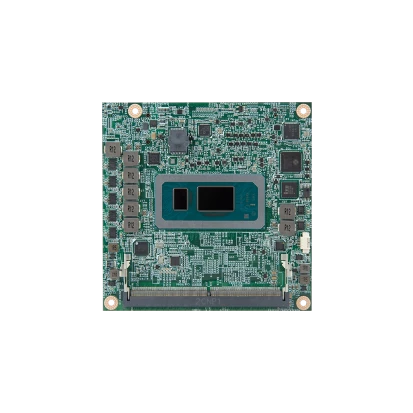

COM Express Type 6 Module, Intel Core Ultra 7/5 CPU, 2xDDR5 SO-DIMM Socket, 1xNVME SSD Opt., LVDS/3xDDI/VGA, 1x2.5GbE LAN, 2xUART, 8xUSB 2.0, 4xUSB 3.0, GPIO, 2xSATA, 8xPCIe x1 Lanes, 2xPCIe x4 Lane, TPM 2.0, -40..85C
EmCOMe-i95U0-Series
Arbor
SKU: 80009600
Price on request
Available on order
Available on order
System Architecture
Form Factor
COM Express Compact
CPU
СPU Generation/Family
Meteor Lake
Socket
CPU onboard
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA, 2xLVDS 24 bit, 3xDDI
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
COM Total
2
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
Extension Slots
PCI Express x4
2
PCI Express x1
8
COM Express
2
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.2 kg
Documentation
