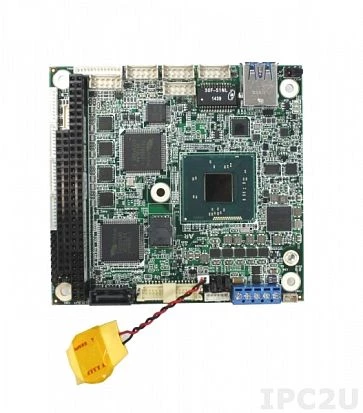

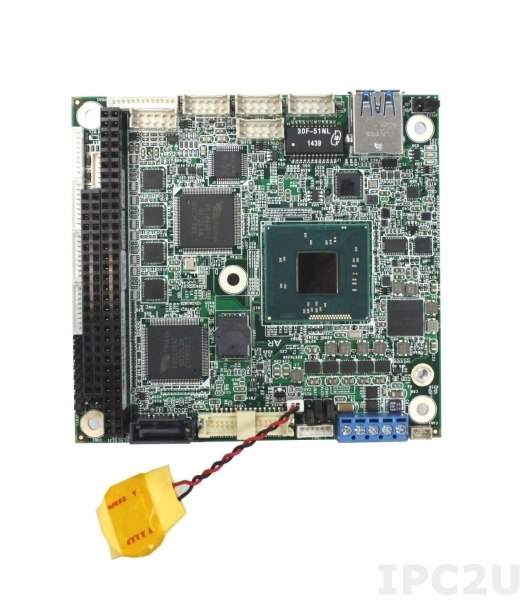

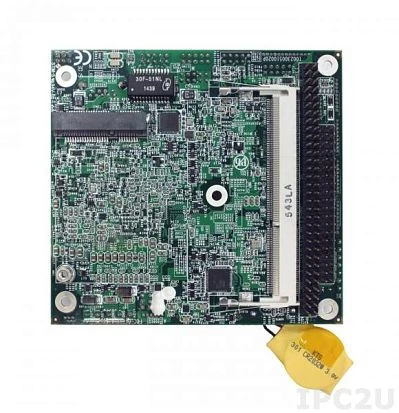

Processor Board PC/104 Intel Atom E3845 1.9GHz, chipset Intel ICH8M, 1GB DDR3L, up to 8GB DDR3L, VGA, LVDS, 2xGb LAN, 4xCOM, 2xUSB 2.0, 1xUSB 3.0, SATA II, KB/MS, DIO, AUDIO, -40...+85C
Em104-i230F-I-WT-E3845 R1.2
Arbor
SKU: 09754800
Price on request
Available on order
Available on order
System Architecture
Form Factor
PC/104
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA, 2xLVDS 24 bit
Ethernet
Controller Type
Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
1
PC/104
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Internal Ports
SATA 2, 10-pin DIO, 10-pin RS-232, 2x4-pin USB 2.0, 6-pin KB/MS, 30-pin LVDS, 10-pin Audio, 10-pin RS-232/422/485, 16-pin VGA, 10-pin GbE
Connectors
USB type A
Software
Operating System Compatibility
Windows 7, Windows 8.1, Ubuntu
Dimensions and weight
Width
96 mm
Length
90 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
