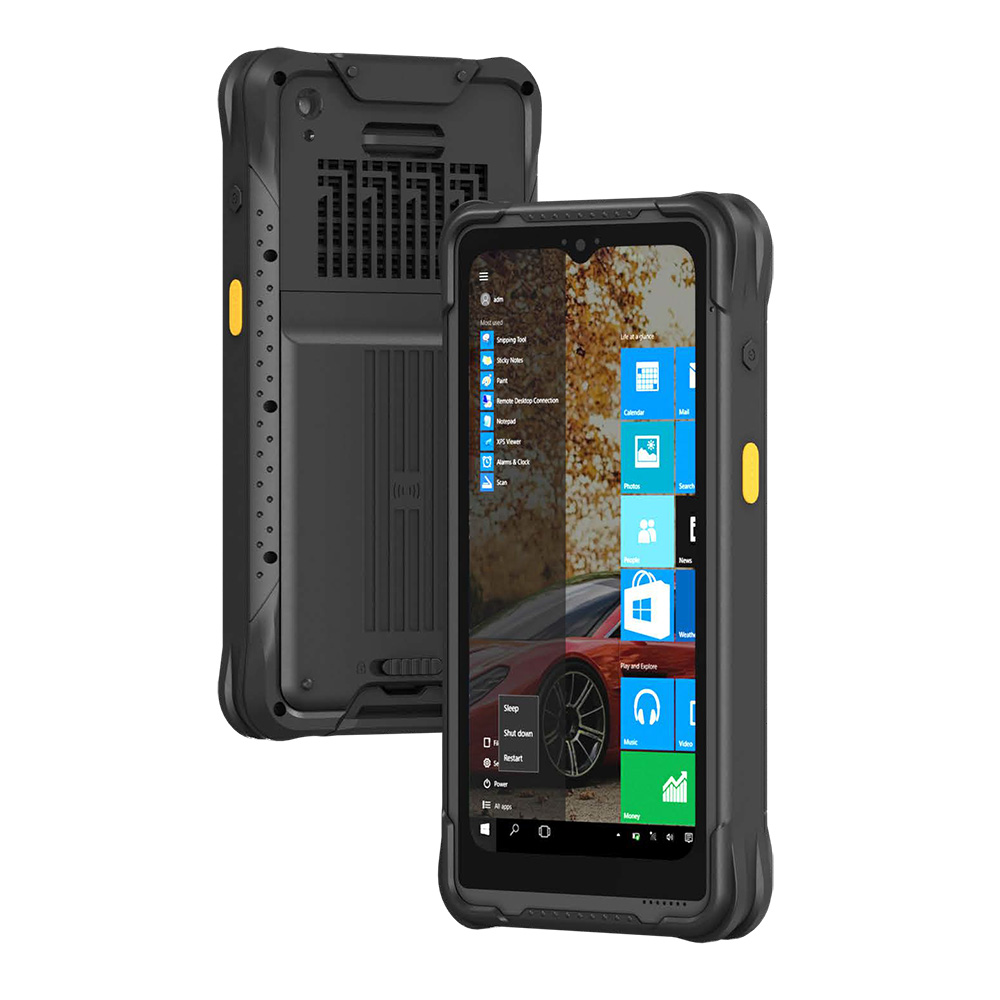

6.5" Rugged IP67 Handheld, 720x1600, 500 cd/m2, Capacitive Touch, Celeron N5100 2.8GHz CPU, 8GB RAM, 128GB Storage, USB 2.0 Type-C, TF slot, Nano-SIM slot, Opt: (Barcode, NFC), LTE/GPS, WiFi/BT, 13.0/5.0MP Cam, 4500mAh, Support Windows 10/11
EM-I61J-M
SKU: 57822400
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6.5 "
Maximum resolution
720x1280 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Jasper Lake
Processor Installed
Intel Celeron N5100
Socket
CPU onboard
Max CPU frequency
2.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
5 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
NFC
Optional
Antenna characteristics
Cellular interfaces
4G
Bluetooth
v5.0
LED / Controls
Controls
On/Off, Volume Keys
Connectors
Connectors
SIM Card Slot, SD card slot, USB type A, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
4000 mA*h
RunTime Battery 1
6 h
Battery 1 Hotswap
No
Software
Operating System Compatibility
Windows 10, Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
88.6 mm
Height
183.1 mm
Depth
24.1 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
5-95%
Shock
Drop height:1.5m
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE
MIL-STD-810
MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
0.47 kg
Gross Weight
0.57 kg
