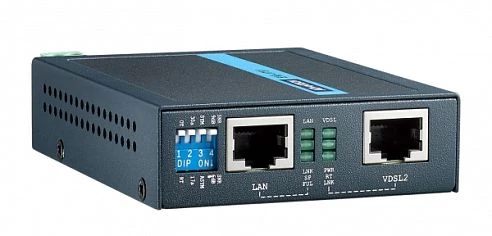

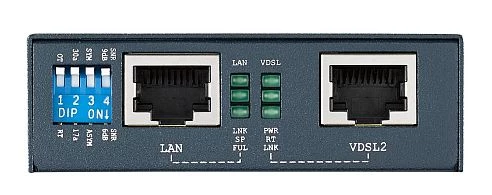

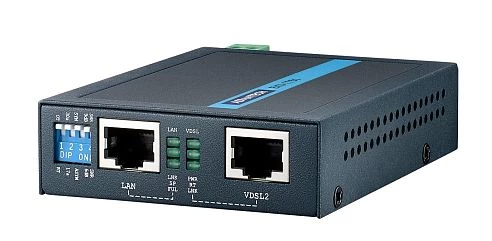

Long Reach Ethernet Extender, 10/100Base-T, Ethernet over VDSL2, up to 1200 meters
EKI-1751-AE
Advantech
SKU: 08070600
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
System Power Input
Input Voltage DC
12..12 V
Operating Conditions
Operating Temperature
0..45 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
72.5 mm
Depth
94.5 mm
Height
23 mm
Standards and Certifications
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Freefall
IEC 60068-2-32
Safety
UL 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
