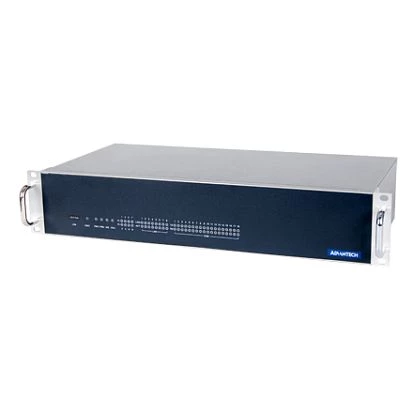

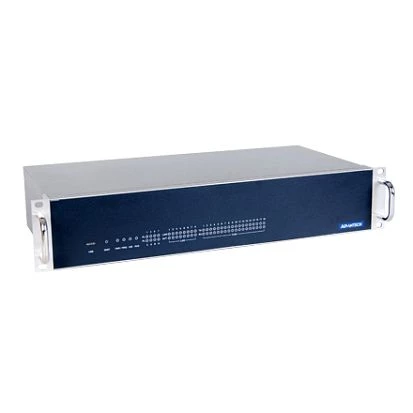

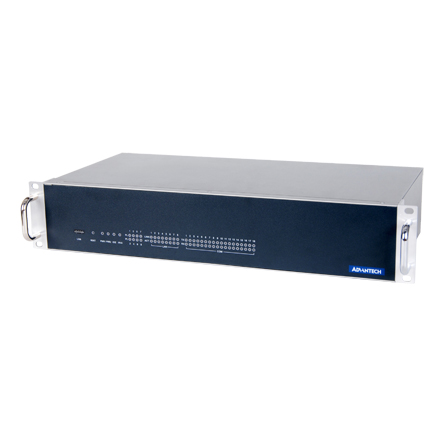

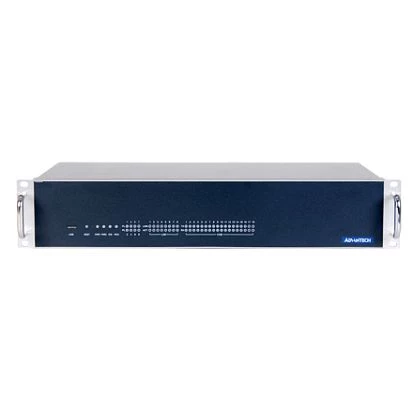

2U Fanless System with Intel Atom N2600 1.6GHz, 2Gb DDR3, 2x2.5" SATA HDD, CF, VGA, 18xCOM, 8xGbE LAN, 5xUSB, 1xPCI-104
ECU-4674-A53SAE
Advantech
SKU: 07152800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
2 U
Type
Fanless
CPU
Processor Installed
Intel Atom N2600
Max CPU frequency
1.6 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Interfaces
VGA
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
2
10/100 Mbit/s
6
Interfaces
RS-232
2
RS-232/485
16
USB Total
5
Digital Input-Output
Channels of DIO
16
Drive interfaces
RAID Levels
1
CFast Slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 5xUSB, 8xRJ45 Ethernet
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Industrial
Supported Types of Power Supply
Redundant
Software
Operating System Installed
Linux OS
Dimensions and weight
Width
440 mm
Height
88 mm
Depth
220 mm
Operating Conditions
Operating Temperature
-25..70 °C
Vibration
IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash: 2 Grms @ 5 ~ 500 Hz
Shock
IEC 68 2-27 CompactFlash®: 30 G half sine, 11 ms
Standards and Certifications
Certifications
CE, FCC Class A
Power Automation
IEC 61850-3, IEEE 1613
Dimensions
Net Weight
5.5 kg
Gross Weight
8 kg
