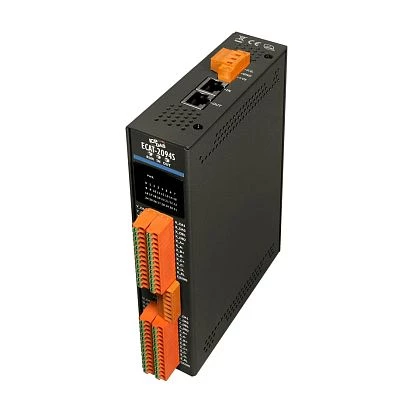

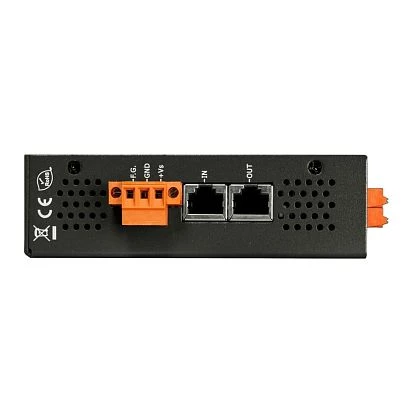

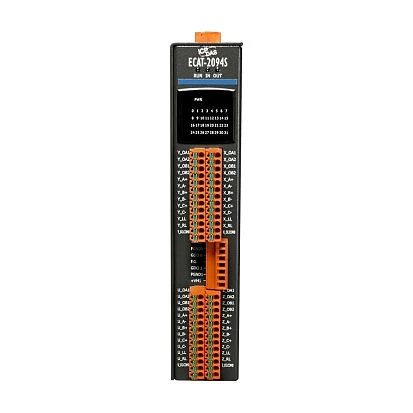

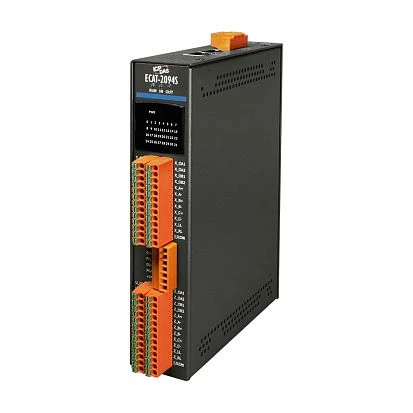

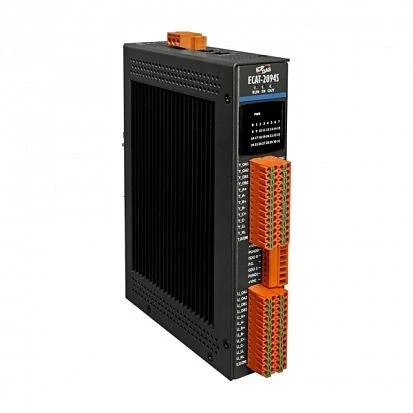

EtherCAT slave 4-axis stepper motor controller/ driver (Metal)
ECAT-2094S
ICP DAS
SKU: 08347400
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~5 V
Level of Logic "1"
10~30 V
Isolation of Digital Input
3750 V
Number of channels
4
Max frequency
4 kHz
Digital Output
Total channels of digital output
2
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Channels
4
System Power Input
Input Voltage DC
20..30 V
Dimensions and weight
Width
33 mm
Depth
110 mm
Height
181 mm
Operating Conditions
Operating Temperature
-25..40 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.67 kg
Gross Weight
0.87 kg
