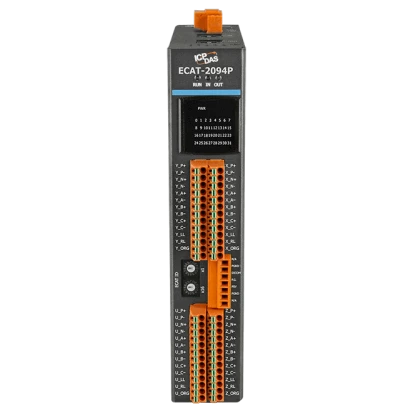

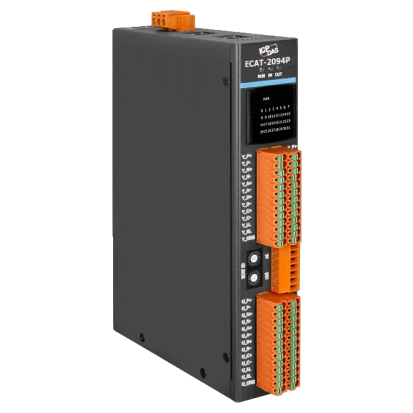

EtherCAT slave CiA402 Standard 4-axis pulse output module (Metal)
ECAT-2094P
ICP DAS
SKU: 10213000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall

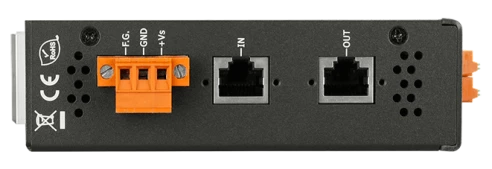

Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Total channels of digital input
12
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~24 V
Isolation of Digital Input
3750 V
Number of channels
4
Signal Type
A/B, CW/CCW, Pulse/Dir
Max frequency
1 kHz
Digital Output
Channels
4
Signal Type
CW/CCW, Pulse/Dir
Output frequency range
0~4 MHz
System Power Input
Input Voltage DC
20..30 V
Dimensions and weight
Width
37 mm
Depth
191 mm
Height
148 mm
Operating Conditions
Operating Temperature
-25..40 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.67 kg
Gross Weight
0.87 kg
