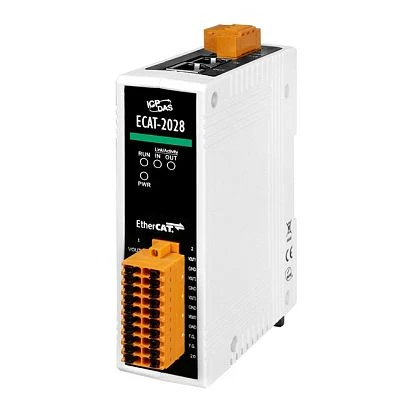

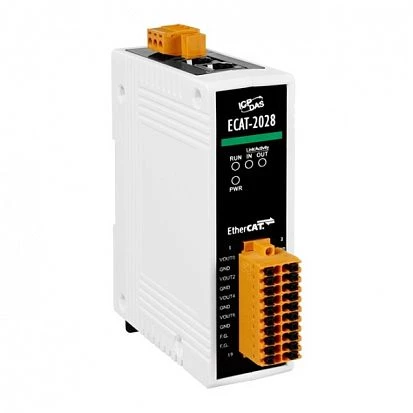

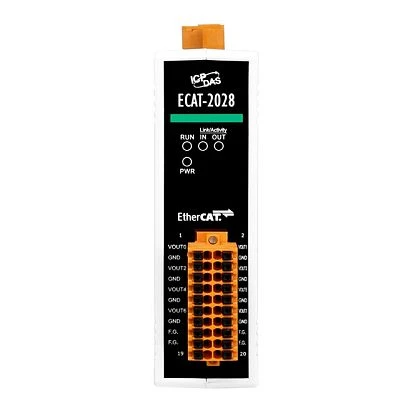

EtherCAT Slave I/O Module with Isolated 8-ch AO (RoHS)
ECAT-2028
ICP DAS
SKU: 07677800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration

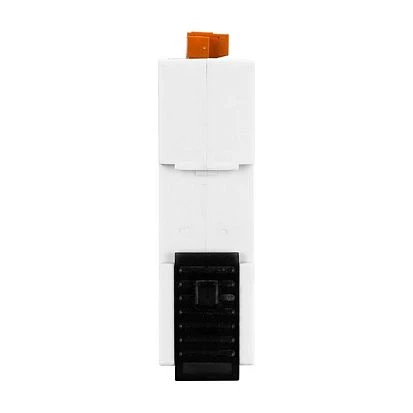

DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Output
Channels of analog input
8
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Connectors
Connectors

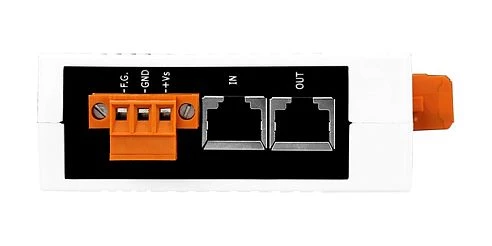

2xRJ45, Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
90 mm
Depth
33 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE/FCC
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.23 kg
Gross Weight
0.23 kg
Documentation
