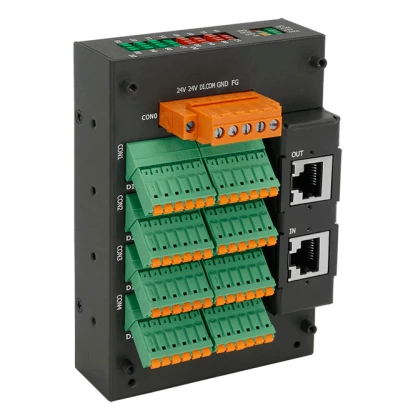

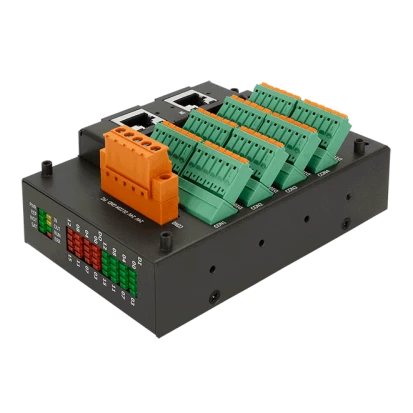

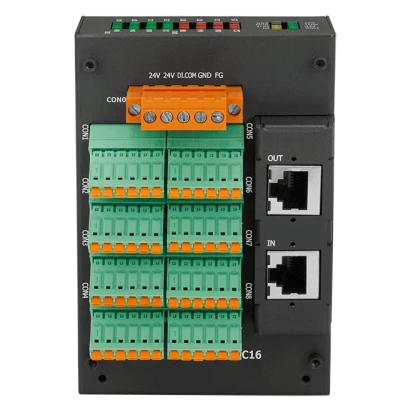

EtherCAT Slave I/O Module with Isolated 16-channel Digital Inputs and 16-channel Digital Outputs, 24VDC-in
EC2-P16C16
ICP DAS
SKU: 10469500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

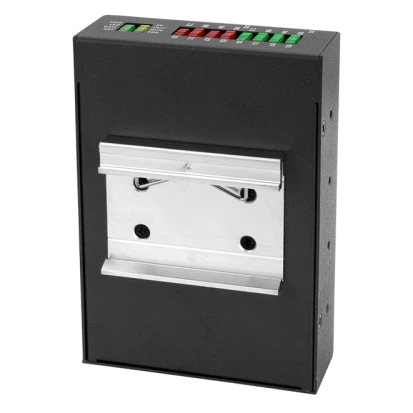

DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Total channels of digital input
16
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~24 V
Sink/Source
Dry: Source, Wet: Sink/Source
Isolation of Digital Input
3750 V
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
0~40 V
Max. load current
150 mA
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
83 mm
Depth
65 mm
Height
122 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Gross Weight
0.3 kg
