DL-303-WF

ICP DAS
SKU: 08110600
Remote CO/CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis

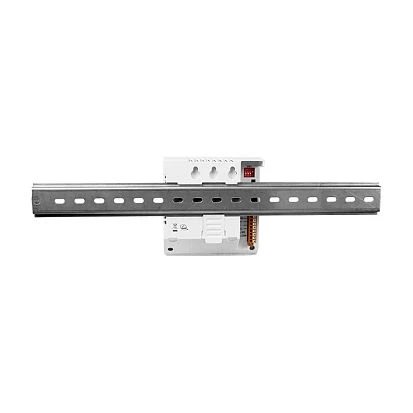

Mounting Configuration
DIN-Rail mount, Desktop, Wall
Display
Display Type
LCD TFT
Diagonal
2.8 "
Maximum resolution
320x240 Dots
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client, DCON slave
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
System Power Input
Input Voltage DC
12..48 V
Interfaces
RS-485
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Sensors
Measuring Range
-10...+50 °С
Resolution
0.1 °C
Accuracy (+/-)
0.6 °C
Measuring Range
0…100%
Resolution
0 %
Types of gases and particles measured
(CO2)
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
106 mm
Depth
56 mm
Height
114 mm
Dimensions
Gross Weight
1 kg
Documentation
ICP DAS DL-303-WF-IP65 IP65 Remote CO/CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS)
ICP DAS DL-303 Remote CO/CO2/Temperature/Humidity Data Logger with Safety Alarm (RoHS)
ICP DAS DL-303-IP65 IP65 Remote CO/CO2/Temperature/Humidity Data Logger with Safety Alarm (RoHS)
